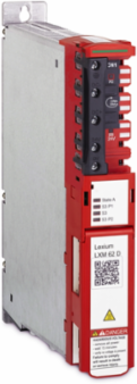

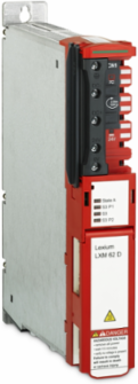

Schneider Electric LXM62DU60F21000 Lexium 62 Double Drive 6 A, 0.95 kW, 310 mm Height, IP20
- MPN: LXM62DU60F21000
- PPN: SCH-LXM62DU60F21000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Double Drive from Schneider Electric, specifically the Lexium 62 model, is engineered to deliver exceptional performance and reliability in motion control applications. With a compact design measuring just 44.5 mm in width and a robust height of 310 mm, this drive is capable of continuous power output of 0.95 kW, making it suitable for a variety of servo motors optimized for torque and speed. It features an array of safety functions, including safe torque off and safe stop modes, ensuring the highest standards of operational safety in compliance with multiple international standards. This versatile drive supports both three-phase and single-phase supply voltages, and its integrated communication interface enhances connectivity, making it an ideal choice for automation and control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth270 mm
Communications & Management Attributes
- Communication Interface
- SERCOS III, Integrated
Complementary Attributes
- Line Rated Current
- 2.0 A
- Maximum Current Irms
- 6.0 A
- Minimum Ambient Air Temperature For Operation
- 5.0 °C
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Operational Altitude3000.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- terminal 0.2...15 mm², 24 AWG...16 AWG CN4), terminal 0.5...16 mm², 20 AWG...6 AWG CN5), terminal 0.75...16 mm², 18 AWG...6 AWG CN6), terminal 0.2...6 mm², 24 AWG...10 AWG CN7)
- Safety Function
- STO (safe torque off), SS1 (safe stop 1), SS2 (safe stop 2), SOS (safe operating stop), SMS (safe maximum speed), SLS (safe limited speed), SDI (safe direction indication)
- Certificate Agency
- EAC, CSA, CE, UL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.28407139268155973, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.6400915165922798, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 4 042 kg CO2 eq., 4041.938244045323
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1406012EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Component Name
- LXM62
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 70.0 °C
- Device Short Name
- LXM 62
- Maximum Operational Altitude
- 3000.0 m
- Nominal Power
- 0.95 kW
- Phase
- three phase
- Product Or Component Type
- double drive
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Tightening Torque
- CN1 2.5-2.5 N.m
- Vibration Resistance
- 10 m/s² conforming to IEC 60721-3-3
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor the position of a servo motor with 80% use rate at 119 W in industrial environment during 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 8339.52
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 310 mm
- Maximum [In] Rated Current
- 2.0 A
- Package Weight(Lbs)
- 4.017 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Supply Voltage208-360 V three phase, 380-480 V three phase
[Us] Rated Supply Voltage400 V - 10...10 %)three phase, - 10...10 %)three phase, - 10...10 %)single phase, 230 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]6 kg CO2 eq., 6.463285323593013
Carbon Footprint Of The Manufacturing Phase [A1 To A3]578 kg CO2 eq., 577.8777208374405
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power0.95 kW
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Environmental Characteristic3K3 conforming to IEC 60721-3-3
Minimum Ambient Air Temperature For Operation5.0 °C
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Total Lifecycle Carbon Footprint4 628 kg CO2 eq.
Pep CodeENVPEP1406012EN
Pep Verification Date2025-08-28
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %57
Width Nominal44.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504404000
Environment Attributes Main
- Product Compatibility
- servo motor SH3 70 mm, 3 optimized in terms of high torque, servo motor SHSservo motor SH3 55 mm, 1 optimized in terms of torque and speed, servo motor SH3 55 mm, 2 optimized in terms of torque and speed, servo motor SH3 55 mm, 3 optimized in terms of torque and speed, servo motor SH3 70 mm, 1 optimized in terms of torque and speed, servo motor SH3 70 mm, 2 optimized in terms of high torque, servo motor SH3 100 mm, 1 optimized in terms of high torque, servo motor MH3 70 mm, 1 optimized in terms of torque and speed
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 5-55 °C
- Environmental Disclosure
- ENVPEP1406012EN
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-85 %
- Pep Verification Date
- 2025-08-28
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Take BackNo
China Rohs RegulationX
Carbon Footprint4628.20341311563
Circularity ProfileENVEOLI1406012EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase
- Range Of Product
- PacDrive 3
Product Or Component Typedouble drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Current 3s Peak
- 6 A 4 kHz, 6.0 A
- Discrete Output Voltage
- 24 V DC
Continuous Output Current2 A 4 kHz
Number Of Outputs2 digital
Input Attributes
- Number Of Inputs
- 2 digital, 2 touch probe
Discrete Input Voltage24 V DC for - 20...25 %
