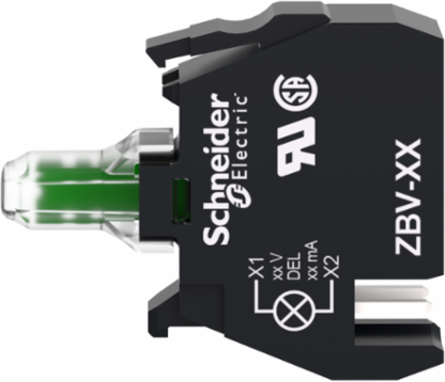

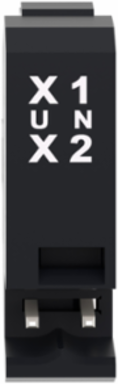

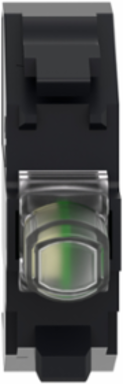

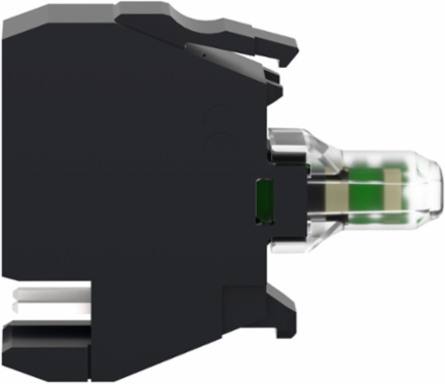

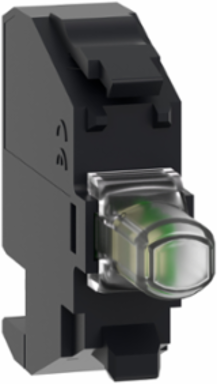

Schneider Electric ZBVB14 Harmony XB4 Light Block with Universal LED, 24V AC/DC, IP20
- MPN: ZBVB14
- PPN: SCH-ZBVB14
CAD
$54.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZB, white light block operates with an integral LED. It is supplied with 24V AC/DC and uses plug-in terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Light Block Supply
- direct
- Connections - Terminals
- plug-in connector
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceuniversal LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourwhite
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.016 kg
- Service Life
- 100000 h at rated voltage and 25 °C
- Supply Voltage Limits
- 19.2-30 V DC || 21.6-26.4 V AC
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Current Consumption18 mA
Surge Withstand1 kV IEC 61000-4-5
Environment
- [Us] Rated Supply Voltage
- 24 V
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Ip Degree Of Protection
- IP20 IEC 60529
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
Ambient Air Temperature For Operation-40-70 °C
StandardsEN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
