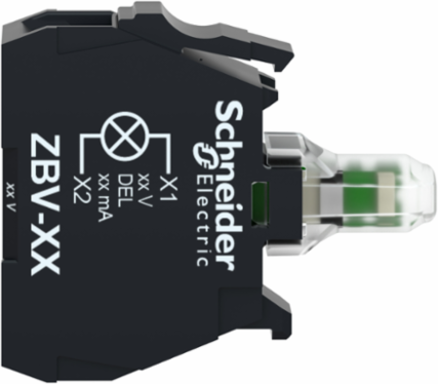

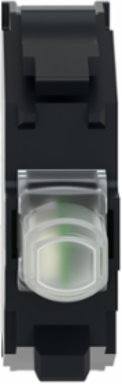

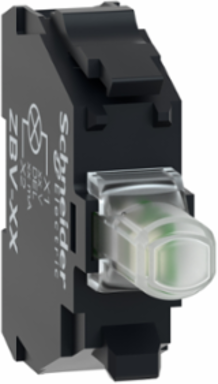

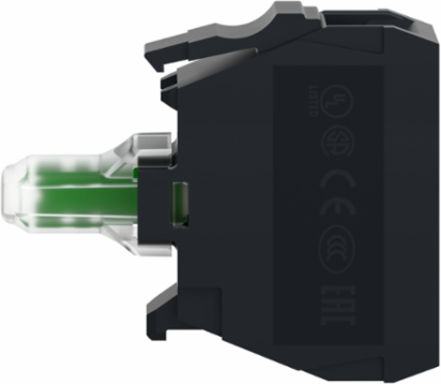

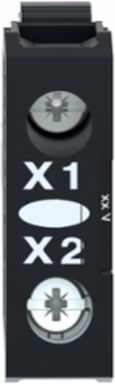

Schneider Electric ZBVJ1 Harmony XB4 XB5 White Light Block 12V AC/DC, IP20, Integral LED
- MPN: ZBVJ1
- PPN: SCH-ZBVJ1
CAD
$51.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB, white light block operates with an integral LED. It is supplied with 12V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB5 || Harmony XB4
- Light Block Supply
- direct
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceuniversal LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourwhite
[Us] Rated Supply Voltage12 V AC/DC 50/60 Hz
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.017 kg
- Device Presentation
- basic element
- Surge Withstand
- 1 kV IEC 61000-4-5
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Current Consumption15 mA
Service Life100000 h at rated voltage and 25 °C
Supply Voltage Limits10-15 V DC || 10.2-13.8 V AC
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
[Us] Rated Supply Voltage12 V
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Ip Degree Of ProtectionIP20 IEC 60529
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1808008EN
