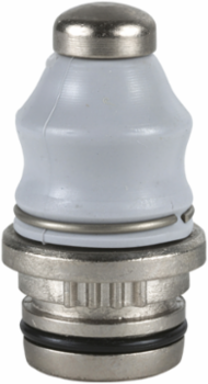

Telemecanique Sensors ZCE1A Limit switch head, Limit switches XC Standard, ZCE, metal end plunger with silicone boot
- MPN: ZCE1A
- PPN: TES-ZCE1A
- UNSPSC: 39122213
CAD
$28.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head supports positive opening operation. It is a spring return metal end plunger with a silicone boot. It supports vertical approach in 1 direction. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCMD, XCKT, XCKD and XCKP limit switches. It is associated with ZCT28N12, ZCMD21M12, ZCT21N12, ZCD25, ZCP29, ZCP31, ZCP26, ZCD26, ZCP21, ZCMD81L2, ZCMD81L1, ZCT25P16, ZCMD29L5, ZCP39, ZCMD39L2 and ZCT26N12 bodies. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | end plunger spring return metal with silicone boot) |
| Associated Body | ZCT28N12 || ZCMD21M12 || ZCT21N12 || ZCD25 || ZCP29 || ZCP31 || ZCP26 || ZCD26 || ZCP21 || ZCMD81L2 || ZCMD81L1 || ZCT25P16 || ZCMD29L5 || ZCP39 || ZCMD39L2 || ZCT26N12 || ZCT25G11 || ZCMD29C12 || ZCMD29L2 || ZCMD25L2 || ZCT27N12 || ZCMD41L1 || ZCMD37L1 || ZCD31 || ZCMD81L5 || ZCMD61C12 || ZCMD41L2 || ZCT28G11 || ZCT26G11 || ZCMD61M12 || ZCMD21L08R12 || ZCMD25L5 || ZCMD25L1 || ZCD21 || ZCMD37L2 || ZCT27G11 || ZCMD29L1 || ZCD37 || ZCT28P16 || ZCMD21L5 || ZCT21P16 || ZCP29M12 || ZCD29M12 || ZCP35 || ZCD39 || ZCMD69C12 || ZCMD41L5 || ZCMD39L5 || ZCT21G11 || ZCMD37L5 || ZCD35 || ZCP28 || ZCMD21C12 || ZCMD21L2 || ZCMD39L1 || ZCP27 || ZCT26P16 || ZCP37 || ZCMD21L1 || ZCT25N12 || ZCD29 || ZCP21M12 || ZCP25 || ZCD21M12 || ZCT27P16 || ZCD27 || ZCD28 || ZCMD21L08U78 |
| Device Short Name | ZCE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCMD || XCKT || XCKD || XCKP |
| Head Type | plunger head |
Complementary
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
