Schneider Electric QON24L70 QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs

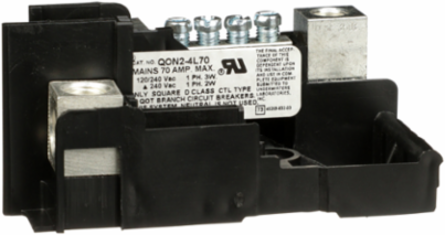

QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs

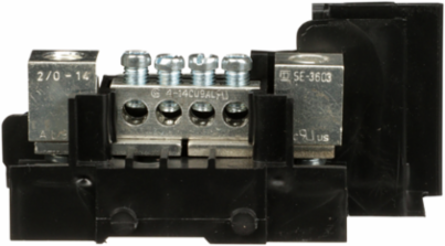

QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs

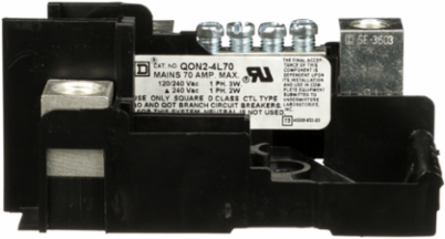

QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs

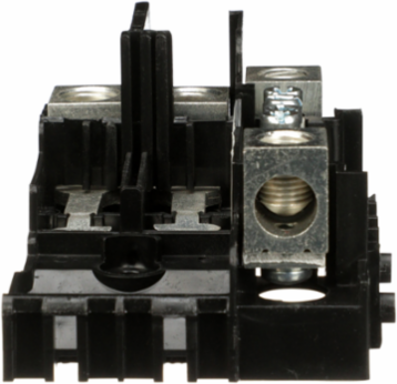

QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs

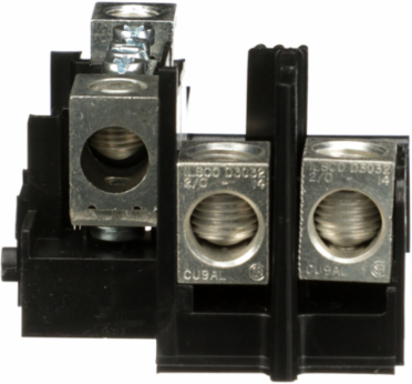

QO Load Center Mounting Base, 1 Phase, 2 Spaces, 70A Main Lugs
  • MPN: QON24L70
  • UPC: 785901804598
  • PPN: SCH-QON24L70
In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$177.95/ EA

Description

QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers are designed for residential and industrial use to protect electrical systems, equipment and people. Systems are single or three phase and have indoor and outdoor versions. QO Load Centers enable the use of a full complement of accessories. Indoor enclosures are designed to be rotated 180 degrees to accommodate top or bottom service entrance feed. This QO OEM plug on mounting base is for 70A 120/240 VAC 1 phase 3 wire systems. This QO OEM mounting base has a 10 kA breaking capacity. This product is for 2 spaces. This mounting base will accept only QO plug on circuit breakers. The QON mounting base is UL component recognized.

Specifications

Voltage Rating
120/240 V AC
Short-Circuit Current Rating
10 kA
Wiring Configuration
3-wire
Product Type
Mounting base
Range of Product
QO
Width
107 mm (4.21 in)
Depth
48 mm (1.89 in)
Material Compliance
Free of Substances of Very High Concern above threshold, Toxic Heavy Metal Free, Mercury Free, RoHS Compliant
Country of Origin
Mexico
Rated Current70 A
Number of Phases1 phase
Number of Spaces2
Loadcentre TypeMain lugs
Wire SizeAWG 14...AWG 4 copper, AWG 12...AWG 3 aluminum
Height34 mm (1.34 in)
Net Weight1.400 kg (3.09 lb)
Product CertificationsUL, CSA
