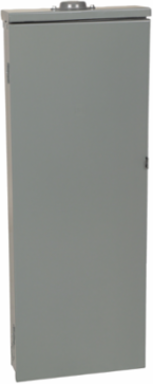

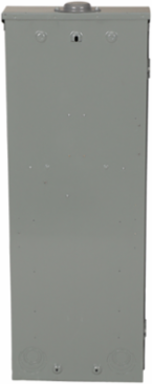

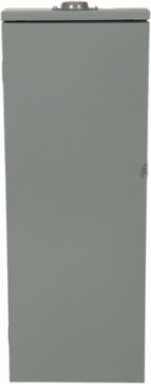

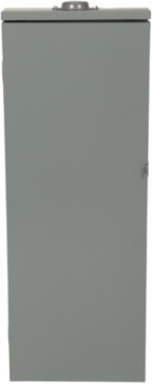

Square D QO330MQ125RB QO Load Center 125A 3 Phase NEMA 3R 30 Circuits
- MPN: QO330MQ125RB
- UPC: 785901290599
- PPN: SCH-QO330MQ125RB
CAD
$3723.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 30 spaces and 30 circuits. This system provides a 125A convertible main breaker in a NEMA 3R enclosure. It also includes a QDL circuit breaker and is UL rated.
Documentation & Downloads
Specifications
Additional
- Amperage
- 125 A
- Number of Spaces
- 30
- Short-Circuit Current
- 25 kA

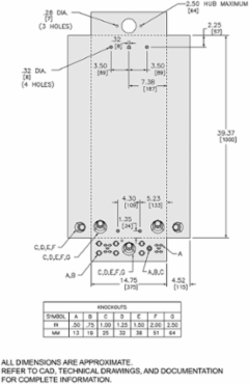

- Height
- 1000 mm (39.37 in)
- Enclosure Type
- weatherproof (NEMA 3R outdoor)
- Surface Finish
- baked enamel gray
- Wiring Configuration
- 3-wire, 4-wire
- Loadcentre Type
- Convertible Mains (breaker)
- Number of Tandem Circuit Breakers
- 0
- Country of Origin
- US
- Mercury Free
- Yes
- EU RoHS Directive
- Compliant
- RoHS Exemption Information
- Yes
- Warranty
- 18 months
Number of Circuits30
Number of Phases3 phases
Voltage Rating208Y/120 V AC, 240/120 V delta AC, 240 V delta AC
Width375 mm (14.76 in)
Materialtin plated copper busbar, welded galvannealed steel enclosure
Electrical Connectionlugs
Product Or Component TypeLoadcentre
Cover Typesurface cover
Ambient Air Temperature For Operation-5 °C to 40 °C
Toxic Heavy Metal FreeYes
China RoHS RegulationPro-active declaration (out of China RoHS legal scope)
Reach RegulationFree of SVHC above threshold
Environmental DisclosureENVPEP2212001
