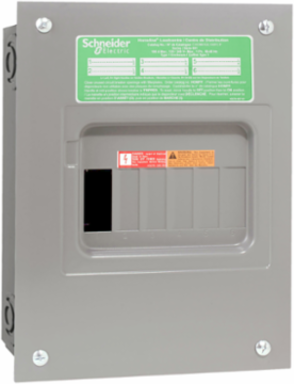

Schneider Electric CHOM612L100F Loadcentre, Homeline, 1 phase, 6 spaces, 12 circuits, 100A main breakers, Type 1, flush

MPN: CHOM612L100F
UPC: 785901688297
PPN: SCH-CHOM612L100F

Spec sheet

Compare

Loading compare button...

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$138.51/ EA

Qty:

Loading add to cart quantity...

Description

CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has main lugs that are rated at 100A single phase. This CHOM load center provides a 10kA breaking capacity. This system provides 6 spaces in a NEMA 1 enclosure. The box lugs will accept a wire range of 8 AWG to 1 AWG copper or aluminum wire. The flush cover is painted white. HOM Homeline load centers are CSA certified.

Specifications

Complementary

Cover Plate Colour Tint: grey baked enamel

Number Of Tandem Circuit Breakers: 6

Electrical Connection: lugs

Awg Gauge: AWG 8...AWG 1 aluminum/copper

Number Of Circuits: 12

Loadcentre Type: Main lugs

Network Number Of Phases: 1 phase

Cover Typeflush cover

Materialtin plated aluminum: busbar

Enclosure Materialwelded sheet steel

Wiring Configuration3-wire

Number Of Spaces6

Device Compositiongrounding bar (factory installed)

Box Number4

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1403002

Toxic Heavy Metal Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant

Specifications

Mounting Mode: wall mount

Range Of Product: Homeline

Product Or Component Type: Loadcentre

Short-Circuit Current10 kA

[In] Rated Current100 A

[Ue] Rated Operational Voltage120/240 V AC

Environment

Product Certifications: CSA

Ambient Air Temperature For Operation: -5 °C || 40 °C

Nema Degree Of ProtectionNEMA 1 indoor)
