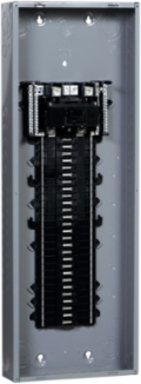

Square D CQO140L200PGRB QO Loadcentre, 1 Phase, 200A, 40 Spaces, NEMA 3R, CSA Certified

MPN: CQO140L200PGRB
UPC: 785901971887
PPN: SCH-CQO140L200PGRB
UNSPSC: 39121101

$637.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 40 spaces and 60 circuits. This system provides 200A main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is CSA rated.

Features

QO™ Loadcentres saves on wiring, eases troubleshooting, and improves installation efficiency
Flexible and convenient main and branch breaker knockouts
Split neutral bars for tidy wiring
Backed-out screws on neutral, ground a and twin and quad breaker terminals
Lifetime warranty is offered on all QO loadcentres

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Depth	95 mm

Complementary Attributes

Line Rated Current	200 A

Ue Rated Operational Voltage	240 V AC

Important Information Attributes

Persona Type Ids	EU, LC, SC
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Cover Type	surface cover
Electrical Connection	lugs
Energy Efficiency Optimized	False
Material	tin plated copper: busbar
Number Of Circuits	80
Number Of Tandem Circuit Breakers	40
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	grounding bar
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	362 mm
Nbr. Of Units In Pkg.	1
Short Circuit Current	65 kA

Persona Type Names	End User, Contractor, Electrician
Local Publishable Date	2026-07-14
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Residential
Awg Gauge	14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Device Composition	grounding bar included (not installed)
Enclosure Material	welded galvannealed steel
Load Center Type	PoN Convertible Mains (lugs)
Mounting Mode	vertical
Number Of Spaces	40
Phase	1 phase 3 wires
Product Or Component Type	Load Center
Range Of Product	QO
Surface Finish	baked enamel Gray
Tightening Torque	main lugs 250 lb.in, 4 AWG...250 kcmil, aluminium/copper
Height Nominal	858 mm
Certificate Agency	CSA
Customs Code	8537109150
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level	0 %
Environmental Disclosure	ENVPEP2212001EN
Nema Degree Of Protection	NEMA 3R weatherproof enclosure
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2212001EN
