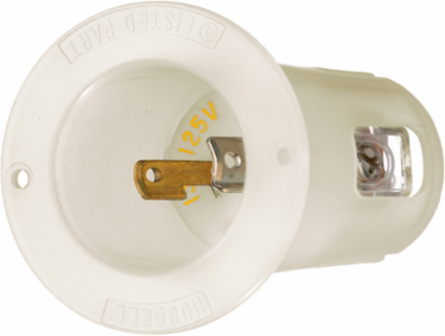

Bryant 7523 Industrial Flanged Inlet Locking Device, 15A 125V, 2-Pole 2-Wire, Screw Terminal
- MPN: 7523
- UPC: 781786629103
- PPN: HBL-7523
- UNSPSC: 39121406
CAD
$57.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 15A 125V, 2-Pole 2-Wire Non-Grounding, L1-15P, Screw Terminal, White
Features
- Flanged Inlet
- 15A 125V
- 2-Pole 2-Wire Non-Grounding
- L1-15P
- Screw Terminal
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Height
- 1.78 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Size
- 2.56 in x 2.19 in x 1.78 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125V
- Connectivity
- Screw Terminals
- Nema Rating
- L1-15P
- Number Of Wires
- 2-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.000 lb.
- Lowest Level UOM
- Each
Dimensions2.56 in x 2.19 in x 1.78 in
Length2.56 in
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL1-15P
Number of Wires2-Wire
Special FeaturesStandard Product
TypeFlanged Inlet
Wire Size#14 AWG to #10 AWG
Width2.19 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleEquipment Base
Description - InvoiceLKG FLG-INLT, 15A 125V, L1-15P
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE5.000x11.500x6.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786629103
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
