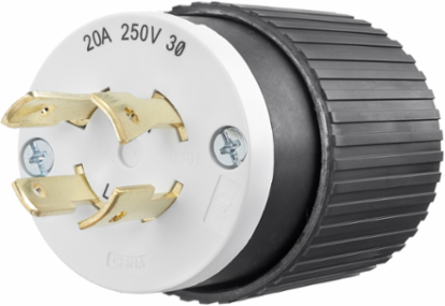

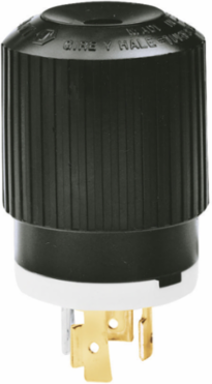

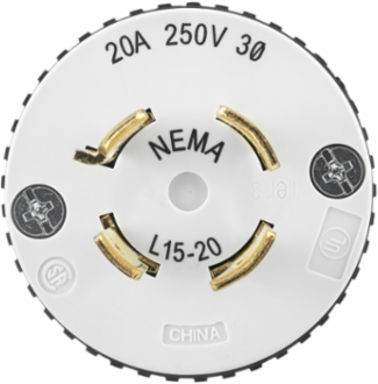

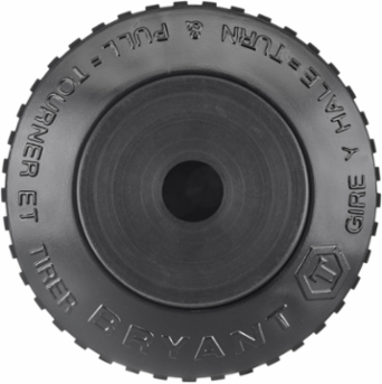

Bryant 71520NP Locking Plug, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire, L15-20P, Composite Material
- MPN: 71520NP
- UPC: 781786695924
- PPN: HBL-71520NP
- UNSPSC: 39121402
CAD
$84.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Male Nylon Plug, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black and White
Features
- Hand grip features wide-rib, non-slip design
- Configuration-specific plug face surrounds blades to prevent infiltration of contaminants
- Captive, combination Slot/Phillips assembly screws
- Double wall construction for extra durability
- Neutral blade is nickel-plated for easy identification
- Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- NEMA Rating
- L15-20P
- Number of Wires
- 4-Wire
- Special Features
- Standard Product
- Color
- Black, White
- Height
- 2.86 in
- Standards - RoHS Compliance Status
- CM
- Voltage Rating Description
- 3 Phase 250 VAC
- Amperage Rating
- 20 A
- Connectivity
- Screw Terminals
- Display Size
- Standard Sized
- Nema Rating
- L15-20P
- Number Of Wires
- 4-Wire
- Style
- Internal Cord Clamp
- Wire Size
- #18 AWG to #8 AWG
- Description - Invoice
- LKG PLUG, 20A 3PH 250V, L15-20P,B/W
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.25 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70781786695923
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Number of Poles3-Pole
Size2.13 in x 2.13 in x 2.86 in
Country of OriginChina
Dimensions2.13 in x 2.13 in x 2.86 in
Length2.13 in
Voltage Rating3 Phase 250 VAC
Width2.13 in
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles3-Pole
PhaseThree Phase
TypePlugs
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Cord Diameter0.465-1.150 in
MaterialComposite
BOX SIZE5.200x12.100x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786695924
Case Weight2.312 lb.
Lowest Level UOMEach
Pallet Height46.800 in
Pallet Weight713.700 lb.
Certifications
- EU RoHS Indicator
- Yes
