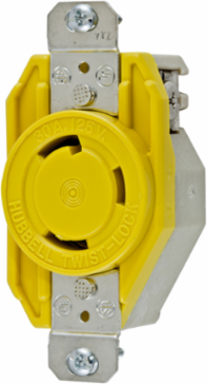

Hubbell Wiring Device-Kellems HBL26CM10 Twist-Lock Marine Grade Receptacle 30A 125V 2-Pole Yellow
- MPN: HBL26CM10
- UPC: 783585808192
- PPN: HBL-HBL26CM10
- UNSPSC: 39121406
CAD
$111.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Corrosion Resistant Single Flush Receptacle, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Nylon face, Yellow.
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- Nickel plated brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Corrosion Resistant
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL26CM10 AutoCAD Drawing
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.31 in
- Horsepower - Maximum
- 2
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Marine Wiring Devices
- Environmental Conditions
- Corrosion Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Type
- Single Flush Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.30 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- L5-30R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 26CM10A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 7.200x13.100x10.200 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585808192
- Case Weight
- 5.739 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.200 in
- Pallet Weight
- 357.000 lb.
- NAICS Code
- 335931A102
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Current / Amperage Rating30 A
Height1.31 in
Industry Standard(s)Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL5-30R
Number of Wires3-Wire
Size3.28 in x 1.70 in x 1.31 in
StandardListed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42;WR Rating
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width1.70 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, CM, 30A 125V, L5-30R, YL
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585808191
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
