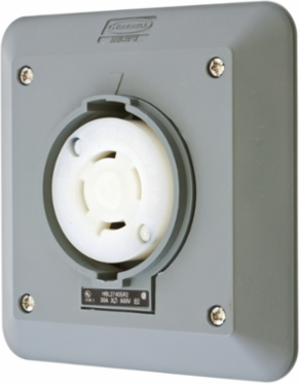

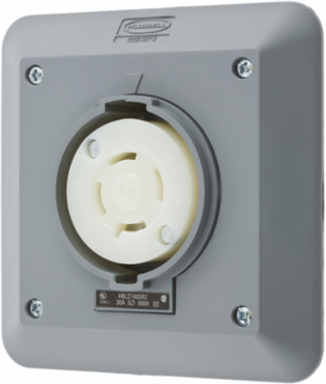

Hubbell Wiring Device-Kellems HBL2740SR2 Twist-Lock Safety Shroud Receptacle, 30A 600V AC, 2-Gang
- MPN: HBL2740SR2
- UPC: 783585234922
- PPN: HBL-HBL2740SR2
- UNSPSC: 39121406
CAD
$120.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Safety-Shroud®, 2-Gang Semi Flush Receptacle, 30A 3-Phase Delta 600V AC, 3- Pole 4-Wire Grounding, NEMA L17-30R, Screw Terminal, Gray
Features
- Accepts Hubbell shrouded and standard NEMA locking plugs
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- 2-Gang Surface Mount
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 5.12 in x 5.12 in x 2.22 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial Shrouded
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- 2-Gang Surface Mount
- Type
- Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.65 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L17-30R
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A120
- Current Rating
- 30 A
- Number of Gang(s)
- 2-Gang
- BOX SIZE
- 5.700x5.600x2.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585234922
- Case Weight
- 3.700 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height2.22 in
Length5.12 in
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL17-30R
Number of Wires4-Wire
Size5.12 in x 5.12 in x 2.22 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating600 V
Voltage Rating Description600 V
Width5.12 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating Temperature-40°C to 85 °C
Description - InvoiceLKG S/SHRD RCPT, L17-30R,2G SURF MT,GY
Harmonization Code8536690200
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialValox™
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
