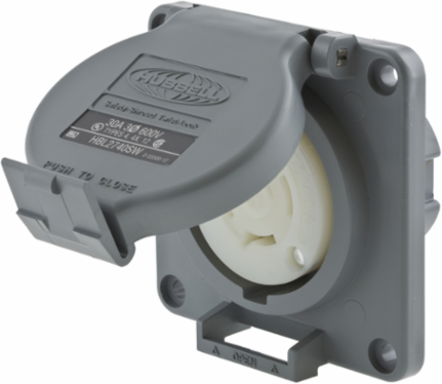

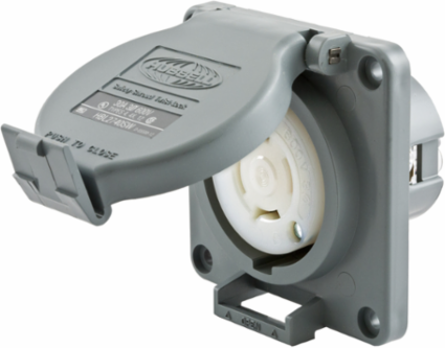

Hubbell Wiring Device-Kellems HBL2740SW Watertight Twist-Lock Receptacle, 30A 600V, 3-Pole 4-Wire
- MPN: HBL2740SW
- UPC: 783585231983
- PPN: HBL-HBL2740SW
- UNSPSC: 39121406
CAD
$178.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30R, Screw Terminal, PBT housing and flange, Gray
Features
- UL type 4X environmental seal while in use and when closed
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2740SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Wiring Device Solutions for Strategic Manufacturing Facilities
- Country of Origin
- United States
- Dimensions
- 3.75 in x 3.75 in x 2.9 in
- Horsepower - Maximum
- 15
- Length
- 3.75 in
- Amperage Rating
- 30 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L17-30R
- Number of Wires
- 4-Wire
- Size
- 3.75 in x 3.75 in x 2.9 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Voltage Rating
- 600 V
- Voltage Rating Description
- 3 Phase 600 VAC
- Width
- 3.75 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHRD RCPT, 30A 3P 600V, L17-30R
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Valox™
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231982
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextPulp & Paper Solutions
Current / Amperage Rating30 A
Height2.9 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Enclosure Rating-enclosure ratings of Types 4, 4X, and/or 12;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial Shrouded Watertight
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesShrouded Watertight Construction
TypeReceptacle
Wire Size#16 AWG to #8 AWG
Weight0.65 lb.
ConnectivityBack Wired Screw Terminals
Nema RatingL17-30R
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Current Rating30 A
Number of Gang(s)1-Gang
BOX SIZE4.200x3.900x3.300 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585231983
Case Weight3.500 lb.
Lowest Level UOMEach
Pallet Height47.000 in
Pallet Weight700.000 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
