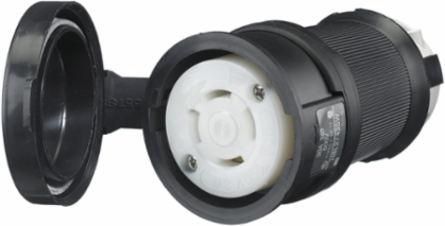

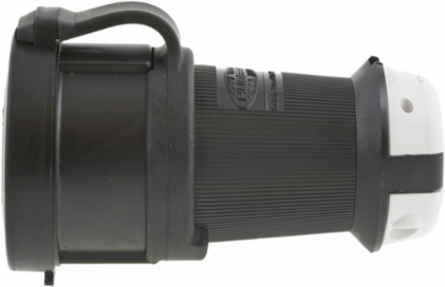

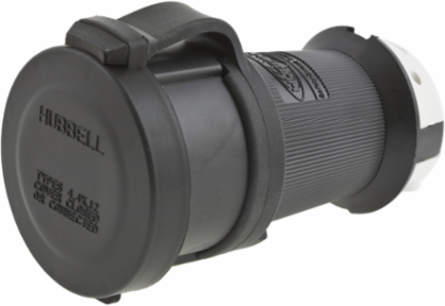

Hubbell Wiring Device-Kellems HBL2743SW Watertight Twist-Lock Female Connector Body, 30A, 600V, 3-Pole, 4-Wire
- MPN: HBL2743SW
- UPC: 783585232027
- PPN: HBL-HBL2743SW
- UNSPSC: 39121421
CAD
$197.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, NEMA L17-30R, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Wire Count
- 4-Wire
- Wire Size Range
- #16 AWG to #8 AWG
- Weight
- 0.65 lb.
- Terminal Screws
- #10-32 Brass
- Operating Temperature Range
- -40b0C to 75b0C
- Environmental Ratings
- Type 4, 4X, 12, IP66 Watertight
- Color
- Black, White
Voltage600 V
PhaseThree Phase Delta
Cord Range0.350-1.150 in (9-29 mm)
Size2.75 in x 2.75 in x 4.40 in
MaterialComposite
NEMA RatingL17-30R
Dielectric Strength2000 V minimum
ComplianceUL Listed, CSA Certified, RoHS Compliant
Country of OriginUS
