Modicon M241 Logic Controller 24 I/O 0.5A NPN Ethernet
Schneider Electric

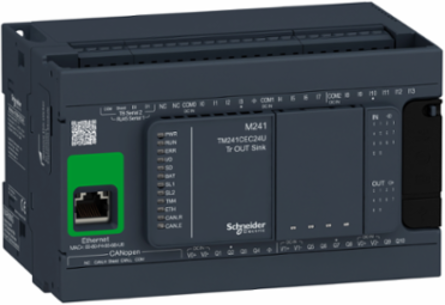

Schneider Electric TM241CEC24U Modicon M241 Logic Controller 24 I/O 0.5A NPN Ethernet

  • MPN: TM241CEC24U
  • PPN: SCH-TM241CEC24U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $867.85

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon M241 Logic Controller 24 I/O 0.5A NPN Ethernet

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, Singapore, United States
    Depth95 mm

    Communications & Management Attributes

    Communication Service
    SNMP client/server, Modbus TCP slave device, Modbus TCP server, Modbus TCP client, IEC VAR ACCESS, FTP client/server, SQL client, DHCP client, Ethernet/IP adapter, send and receive email from the controller based on TCP/UDP library, web server (WebVisu & XWeb system), OPC UA server, DNS client
    Communication Port Protocolnon isolated serial link Modbus master/slave

    Complementary Attributes

    Integrated Connection Type
    non isolated serial link serial 1 RJ45 RS232/RS485, non isolated serial link serial 2 removable screw terminal block RS485USB port mini B USB 2.0, Ethernet RJ45CANopen J1939 male SUB-D 9
    Maximum Current Per Output Common
    2 A Q0...Q3 fast output2 A Q4...Q7 output1 A Q8...Q9 output
    Maximum Number Of Connections
    16 Ethernet/IP device8 Modbus server
    Maximum Tungsten Load
    <2.4 W<2.4 W
    Maximum Cable Distance Between Devicesunshielded cable <50 m input, shielded cable <10 m fast input, unshielded cable <50 m outputshielded cable <3 m fast output
    Maximum Leakage Current5 µA output
    Maximum Output Frequency20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    Maximum Voltage Drop<1 V<1 V

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Application Structure
    8 event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
    Clock Drift
    <= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C<= 60 s/month 25-25 °C, <= 60 s/month 25-25 °C
    Control Signal Type
    A/B 100 kHz fast input (HSC mode)pulse/direction 200 kHz fast input (HSC mode), single phase 200 kHz fast input (HSC mode)
    Electrical Connection
    removable screw terminal block for inputs and outputs pitch 5.08 mm), removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm)
    Local Signalling
    1 LED (green) for PWR, 1 LED (green) for RUN1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED (red) for bus fault on TM4 (TM4)1 LED per channel (green) for I/O state, 1 LED (green) for Ethernet port activity, 1 LED (green) for CANopen run, 1 LED (green) for CANopen error
    Protection Type
    short-circuit protection, short-circuit and overload protection with automatic resetreverse polarity protection fast output
    Resistance To Fast Transients
    2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
    Transmission Rate
    1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232480 Mbit/s 3-3 m USB10/100 Mbit/s Ethernet, 1000 kbit/s 20-20 m CANopen800 kbit/s 40-40 m CANopen500 kbit/s 100-100 m CANopen250 kbit/s 250-250 m CANopen125 kbit/s 500-500 m CANopen50 kbit/s 1000-1000 m CANopen20 kbit/s 2500-2500 m CANopen
    Voltage State 0 Guaranteed
    <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
    Certificate Agency
    RCM, cULus, CE, UKCA, DNV-GL, ABS, LR
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    1.6872087422898394, 2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    46 kg CO2 eq., 46.02511598918962
    Local Data Status
    Publishable
    Return Indicator
    N
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1307080EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1845
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Electromagnetic Emission
    conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011radiated emissions 40 dBμV/m QP class A30-230 MHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011radiated emissions 47 dBμV/m QP class A230-1000 MHz IEC 55011
    Immunity To Microbreaks
    10 ms
    Marking
    CE
    Port Ethernet
    10BASE-T/100BASE-TX - 1 copper cable
    Power Consumption In W
    32.6-40.4 W with max number of I/O expansion module)
    Product Or Component Type
    logic controller
    Realtime Clock
    with
    Resistance To Electromagnetic Fields
    10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
    Returnability
    No
    Software Version
    v6.2.2
    Supply Voltage Limits
    20.4-28.8 V
    Total Lifecycle Carbon Footprint
    914 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To perform control for applications, achieve benchmark performance and embedded motion with its 5 embedded communication ports 100% of the time for 10 years.
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    858.48
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; China, CN
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; China, CN
    Height Nominal
    90 mm
    [Us] Rated Supply Voltage
    24 V DC
    Maximum Number Of I/O Expansion Module
    7 (local I/O-Architecture)14 (remote I/O-Architecture)
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8537109160
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Canopen Feature ProfileDR 303-1, DS 301 V4.02
    Configurable Filtering Time12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
    Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground, between input and internal logic 500 V AC, non-insulated between inputs, between fast input and internal logic 500 V AC, between output and internal logic 500 V AC, non-insulated between outputs, between fast output and internal logic 500 V AC
    Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    Response Time<= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 2 µs turn-off, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, <= 2 µs turn-off, Q0...Q3 fast output, 50 µs turn-on, I0...I13 input, 50 µs turn-off, I0...I13 input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 2 µs turn-on, I0...I7 fast input, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 34 µs turn-on, Q0...Q9 output, <= 250 µs turn-off, Q0...Q9 output, <= 2 µs turn-on, Q0...Q3 fast output, <= 2 µs turn-on, Q0...Q3 fast output
    Vibration Resistance3 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail3 gn 8.4-150 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting
    Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
    Carbon Footprint Of The Distribution Phase [A4]3.5660279724686457, 4 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.01852384858148652
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]862 kg CO2 eq., 862.2553836485951
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypePLC System - PLC CPU
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Data Backed Up128 MB built-in flash memory backup of user programs
    Execution Time For 1 Kinstruction0.3 ms event and periodic task0.7 ms other instruction
    Inrush Current50 A
    Memory Capacity64 MB system memory RAM
    Positioning FunctionsPTO 4 100 kHz)PTO 4 transistor output 1 kHz)
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductModicon M241
    Reset Time10 ms automatic reset output12 s automatic reset fast output
    Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-24 kV on contact IEC 61000-4-2
    Shock Resistance15 gn 11 ms
    Supplyserial 1)serial link supply 5 V, <200 mA
    Sustainable PackagingYes
    Web Servicesweb server
    Pep CodeENVPEP1307080EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
    Recyclability Potential In %3
    Width Nominal150 mm
    Discrete I/O Number24
    Number Of Server Device(S)63 CANopen
    Package Weight(Lbs)661.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
    Relative Humidity
    10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1307080EN
    Eu Rohs Directive
    Compliant By Exemption
    Operating Altitude
    0...6561.68 ft (0...2000 m)
    Packaging Without Single Use Plastic
    Yes
    Storage Altitude
    0-3000 m
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint913.5522602011247
    Environmental DisclosureENVPEP1307080EN
    Ip Degree Of ProtectionIP20 with protective cover in place
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1307080EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    logic controller
    Range Of ProductModicon M241

    ETIM

    ETIM 8
    EC000236
    ETIM 9EC000236

    Output Attributes

    Discrete Output Current
    0.5 A transistor output Q0...Q9), 0.1 A fast output (PTO mode) Q0...Q3)
    Discrete Output Number
    10 transistor 4 fast output
    Discrete Output Voltage
    24 V DC transistor output
    Maximum Output Frequency
    20 kHz fast output (PWM mode)100 kHz fast output (PLS mode)1 kHz output
    Discrete Output Logicnegative logic (sink)
    Discrete Output Typetransistor
    Maximum Current Per Output Common2 A Q0...Q3 fast output2 A Q4...Q7 output1 A Q8...Q9 output
    Output Voltage Limits30 V DC

    Surge Protection And Filtering Attributes

    Configurable Filtering Time
    12 ms input, 1 s fast input, 12 ms fast input0 ms input, 1 ms input, 4 ms input
    Surge Withstand1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-50.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5

    Input Attributes

    Counting Input Number
    4 fast input (HSC mode) 200 kHz, 14 standard input 1 kHz
    Discrete Input Logic
    sink or source
    Discrete Input Voltage
    24 V
    Input Impedance
    4.7 kOhm input2.81 kOhm fast input
    Discrete Input Current5 mA input10.7 mA fast input
    Discrete Input Number14 , discrete input 8 fast input IEC 61131-2 Type 1
    Discrete Input Voltage TypeDC

    Batteries & Runtime Attributes

    Battery Type
    BR2032 lithium non-rechargeable 4 year(s)

    Accessories
