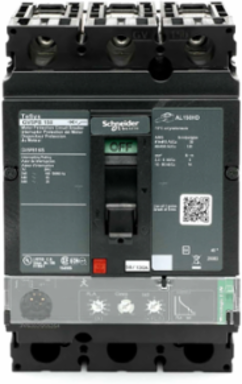

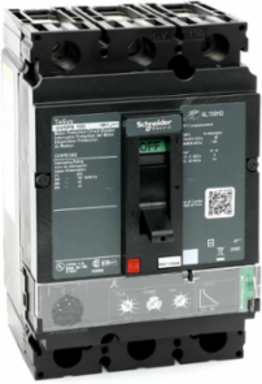

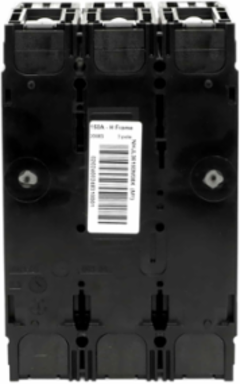

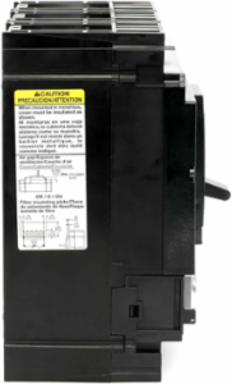

Schneider Electric GV5PB150S TeSys GV5 Motor Circuit Protector 3 Pole 600VAC 150A 25kA
- MPN: GV5PB150S
- PPN: SCH-GV5PB150S
CAD
$1909.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Engineered for reliability and performance, the TeSys GV5 motor circuit protector from Schneider Electric provides essential protection for motors in various applications. This robust device features a three-pole configuration and is rated for a maximum of 150A at 600VAC, ensuring it meets the demands of industrial environments. With an electronic trip unit technology and an adjustable thermal protection range of 58-130A, it offers precise control over motor protection, while its compact design allows for easy unit mounting. Certified by UL and CSA, this circuit protector is built to withstand challenging conditions, boasting a breaking capacity of 25kA at 600VAC and compliance with environmental regulations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth4.36 in
Complementary Attributes
- Line Rated Current
- 150 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5775543976, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.029878509, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 676 kg CO2 eq., 675.7844680064
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 3/0 aluminium/copper
- Mounting Mode
- unit mount
- Phase Failure Sensitivity
- yes
- Product Name
- TeSys GV5
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
- Trip Unit Technology
- electronicMicroLogic 2.2 M,
- Pep Code
- ENVPEP2206028EN
- Pep Verification Date
- 2016-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Height Nominal
- 6.4 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 2.268 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3226776506
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 15.0417243976
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206028EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemotor protection circuit breaker
Software VersionEIME v5.5
Thermal Protection Adjustment Range58-130 A
Total Lifecycle Carbon Footprint692 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2015-04
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 600Y/347VAC and 125A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated short-circuit current interruption rating Ii at 480Vac = 65kA (according to UL489)& 10- Tripping curve: long time and instantanous protections
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh976
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Width Nominal4.12 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 691.7563029613
- Circularity Profile
- ENVEOLI2206028EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2206028EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40-40 °C
Environmental DisclosureENVPEP2206028EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2016-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- motor protection circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
