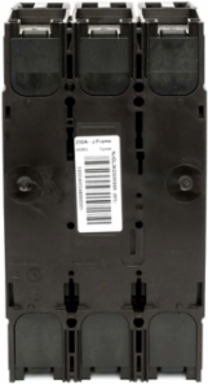

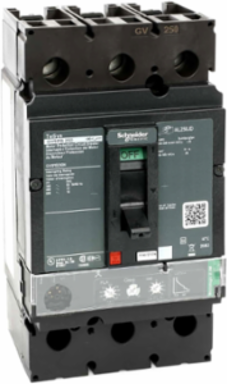

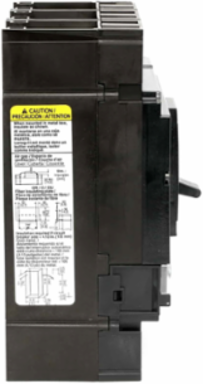

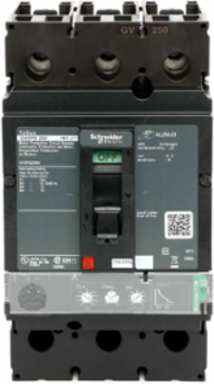

Schneider Electric GV5PB250N Motor circuit breaker, Tesys GV5, 250A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%
Schneider Electric GV5PB250N Motor circuit breaker, Tesys GV5, 250A, 3 pole, 600VAC, 18kA, lugs, thermal magnetic, 80%
- MPN: GV5PB250N
- PPN: SCH-GV5PB250N
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2239.23/ EA
Description
TeSys GV5 motor protective circuit breakers provide an efficient motor control and protection solution up to 520 amps. This 3 pole motor protective circuit breaker is rated at 250A. The thermal protection adjustable dials have settings of 114A to 217A, a selectable tripping class of 5, 10 or 20, and magnetic protection at 15 In. It has SCCR breaking capacity 18kA at 600Y/347V. This UL489 motor protective circuit breaker is has UL Listed, CSA, IEC, CCC, EAC, and Marine certifications.
Specifications
Complementary Attributes
- Line Rated Current
- 250 A
Ue Rated Operational Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.3 kg CO2 eq., 0.3226776506
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 15 kg CO2 eq., 15.0417243976
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 3/0...350 kcmil aluminium/copper
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Product Name
- TeSys GV5
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Trip Unit Technology
- electronicMicroLogic 2.2 M,
- Pep Code
- ENVPEP2206031EN
- Pep Verification Date
- 2016-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Offer Owner Code
- 190788
- Height Nominal
- 7.52 in
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.5775543976, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.029878509, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B61 876 kg CO2 eq., 1876.409742108
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206031EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Phase Failure Sensitivityyes
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemotor protection circuit breaker
Software VersionEIME v5.5
Thermal Protection Adjustment Range114-217 A
Total Lifecycle Carbon Footprint1 892 kg CO2 eq.
Warranty In Months18
Database Version2015-04
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 600Y/347VAC and 125A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated short-circuit current interruption rating Ii at 480Vac = 65kA (according to UL489)& 10- Tripping curve: long time and instantanous protections
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh2710
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
Pn1
Width Nominal4.12 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1892.3815770628
- Circularity Profile
- ENVEOLI2206031EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2206031EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40-40 °C
Environmental DisclosureENVPEP2206031EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2016-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- motor protection circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Specifications
- Country of Origin
- United States
Depth5 in
