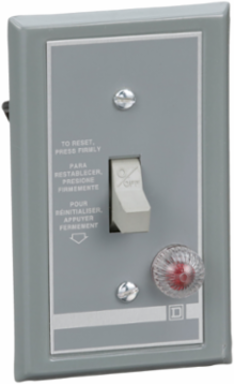

Square D 2510FF1PG Single Manual Starter 277VAC, 16A, 1 Pole, Toggle Switch, 4.50 Inch
- MPN: 2510FF1PG
- UPC: 785901833406
- PPN: SCH-2510FF1PG
CAD
$218.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 flush mounted unit with a gray flush plate can be mounted in a standard switch box or in a machine cavity without a box. This manual starter is 4.50 inches tall, 2.75 inches wide and 2.19 inches deep. This device has a green pilot light indicator. Manual starter is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth2.19 in
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 115 V AC, 1 hp 230 V AC, 1 hp 277 V AC
Line Rated Current16 A
Important Information Attributes
- Certificate Agency
- UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.3306925449850368
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.2413851420949222
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Awg Gauge
- AWG 14...AWG 12 copper
- Control Type
- toggle switch
- Local Signalling
- green indicator
- Number Of Poles
- 1P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- F
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 74
- Width Nominal
- 2.75 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The Distribution Phase [A4]0.06121566378135289, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.025343994075116963, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]4 kg CO2 eq., 4.430371808898552
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Product Kit IdentifierN
Cable Entrywithout
Electrical Connectionscrew clamp terminals
Motor Starter Typenon reversing
Phase1 phase
Product Or Component TypeSingle Unit Manual Starter
Resetmanual
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal4.5 in
[Ue] Rated Operational Voltage277 V AC
Package Weight(Lbs)211.828 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 6.08900915383498
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of Protectionnot rated (flush plate) sheet steel standard size
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- F
Product Or Component TypeSingle Unit Manual Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
