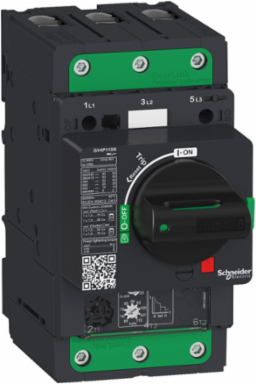

Schneider Electric GV4P80S Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 100kA, thermal magnetic, Everlink terminals
Schneider Electric GV4P80S Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 100kA, thermal magnetic, Everlink terminals
- MPN: GV4P80S
- PPN: SCH-GV4P80S
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1847.34/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 100kA@400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 80 A
- Rated Current
- 80 A
- Ue Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Uimp Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Maximum Operating Rate25 cyc/h
Rated Dutycontinuous IEC 60947-4-1
Ui Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- rotary handle
- Mechanical Robustness
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
- Poles Description
- 3P
- Range
- TeSys Deca
- Trip Unit Technology
- thermal-magnetic, electronic
- Connections Terminals
- EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexibleEverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3.9492911994910447, 4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 12 kg CO2 eq., 11.589527751442649
- R Magnetic Tripping Current
- 1360-1360 A
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 74.322
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1704004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1903
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Application
- motor protection
- Direct Connector
- without
- Fire Resistance
- 960 °C IEC 60695-2-11
- Magnetic Tripping Current
- 1360-1360 A
- Operating Position
- any position
- Power Dissipation Per Pole
- 4.6 W
- Product Name
- TeSys GV4
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-1
- Total Lifecycle Carbon Footprint
- 91 kg CO2 eq.
- Ith Conventional Free Air Thermal Current
- 115 A IEC 60947-4-1
- Rated Current 1
- 80 A
- Pep Code
- ENVPEP1704004EN
- Pep Verification Date
- 2023-08-19
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Offer Owner Code
- 190788
- Height Nominal
- 155 mm
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 0.4241
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 74.322
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 800.39
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 110.51
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2257.1
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1893.5
- Water Use (M3 Eq) Operational Energy Use [B6]
- 2.6298
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Electrical Durability5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
Motor Power Kw45-45 kW 660...690 V AC 50/60 Hz, 30-30 kW 400...415 V AC 50/60 Hz, 37-37 kW 500 V AC 50/60 Hz37-37 kW 400...415 V AC 50/60 Hz, 45-45 kW 500 V AC 50/60 Hz, 22-22 kW 400...415 V AC 50/60 Hz, 30-30 kW 500 V AC 50/60 Hz, 37-37 kW 660...690 V AC 50/60 Hz, 55-55 kW 660...690 V AC 50/60 Hz
Product Or Component Typemotor circuit breaker
Tightening Torque9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1
Carbon Footprint Of The Distribution Phase A40.490099442710692, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.4 kg CO2 eq., 0.436748622941235
Carbon Footprint Of The Use Phase B2 B3 B4 B674 kg CO2 eq., 74.322
Certificate AgencyIEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
Local Publishable Date2025-04-05
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGV4P
Energy Efficiency OptimizedFalse
Halogen Free StatusHalogen free plastic parts product
Mechanical Durability40000 cycles
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys GV4
Software Versionv5.9.4
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Connections Terminals 119 Connections TerminalsEverLink BTR screw connectors
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %49
Pn1
Width Nominal81 mm
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]74.223
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1893.5
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.4788
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]10.693
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]363.6
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]363.6
Environment Attributes Main
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 90.78766701658562
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, France, Poland
Depth165 mm
