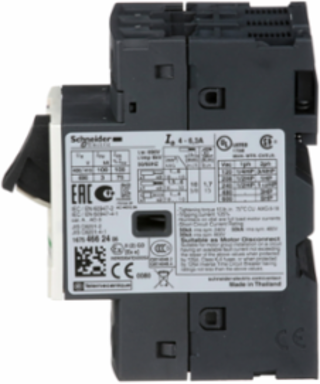

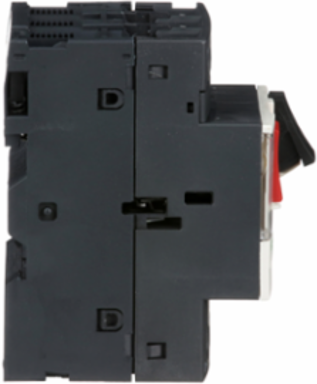

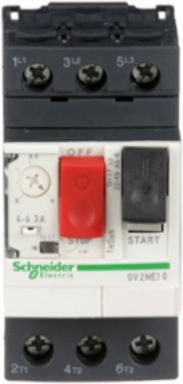

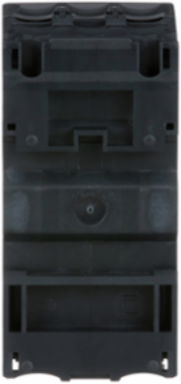

Schneider Electric GV2ME10 TeSys Deca Motor Circuit Breaker 3P 4-6.3A Thermal Magnetic
- MPN: GV2ME10
- PPN: SCH-GV2ME10
CAD
$144.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 4 ampere to 6.3 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- The Schneider GV2ME10 is a TeSys Deca manual motor starter designed to provide integrated thermal-magnetic protection. It acts as a 3-pole circuit breaker and an overload relay in one compact unit, specifically engineered to protect motors from phase failure, short circuits, and sustained overloads.
- This model features a highly precise adjustable setting range of 4.0 to 6.3 Amps. By using the front-facing dial, you can dial in the exact Full Load Amps (FLA) of your motor, ensuring the starter provides "Class 10" trip protection that prevents motor burnout without nuisance tripping during startup.
- Featuring dedicated Start (I) and Stop (O) push-buttons, the GV2ME10 provides local manual control at the machine. The buttons are designed for high-cycle durability and provide a clear tactile response, making it an ideal local "at-motor" disconnect for fans, pumps, and conveyors in industrial environments.
- With a slim 45mm width, this starter is designed for maximum density in control panels. It eliminates the need for a separate fuse block and overload relay, allowing you to reduce the size of your enclosure while maintaining high-performance protection for 600V industrial power systems.
- The GV2ME10 is rated for high breaking capacities, capable of safely interrupting up to 100kA at 230V or 50kA at 400/415V. This ensures that even in the event of a catastrophic short circuit, the starter will safely clear the fault, protecting both your equipment and your personnel.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Mexico, Thailand, United States, ZZ
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 6.3 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mounting Position
- horizontal, vertical
- Utilisation Category
- category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- [Ics] Rated Service Short-circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-275 % 690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08233418348388603, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04117841915749615
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 9 kg CO2 eq., 8.86395212531129
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- push-button
- Device Short Name
- GV2ME
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 100000 cycles
- Motor Power Kw
- 2.2-2.2 kW 400/415 V AC 50/60 Hz3-3 kW 500 V AC 50/60 Hz4-4 kW 690 V AC 50/60 Hz
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 4-6.3 A IEC 60947-2
- Total Lifecycle Carbon Footprint
- 11 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1210004EN
- Pep Verification Date
- 2026-03-30
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 49
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 275.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Range Of ProductTeSys GV2, TeSys Deca
Certificate AgencyCCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
Connections - Terminalspower circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4527026902683291, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.634976413467982
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121004
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2ME
Device Applicationmotor protection
Energy Efficiency OptimizedFalse
Magnetic Tripping Current91-91 A
Mechanical Robustnessshocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole2.5 W
Product NameTeSys GV2
RangeTeSys Deca
Software Versionv6.2.4
Sustainable PackagingYes
Tightening Torque1.7 N.m screw clamp terminal
Trip Unit Technologythermal-magnetic
R Thermal Protection Adj Range 34-6.3 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh98.55
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal89 mm
[Ith] Conventional Free Air Thermal Current6.3 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.075143831688983
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
