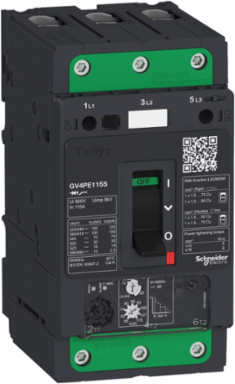

Schneider Electric GV4PE115S Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 100kA, thermal magnetic, Everlink terminals
- MPN: GV4PE115S
- PPN: SCH-GV4PE115S
CAD
$1488.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Poland, Sweden

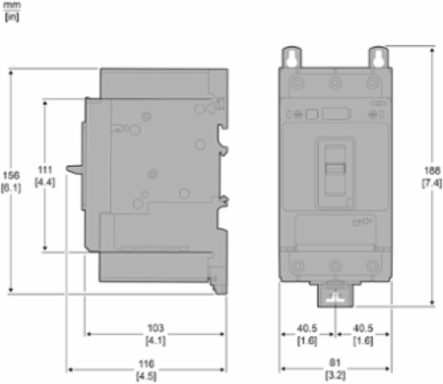

Depth116 mm
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 115 A
- Rated Current
- 115 A
- Ue Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Uimp Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Maximum Operating Rate25 cyc/h
Rated Dutycontinuous IEC 60947-4-1
Ui Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- toggle
- Mechanical Robustness
- vibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
- Product Or Component Type
- motor circuit breaker
- Tightening Torque
- 9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
- Utilisation Category
- category A IEC 60947-2, AC-3 IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase A4
- 0.4598123984982335, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.4 kg CO2 eq., 0.4097585395010464
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 74 kg CO2 eq., 74.322
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
- Local Publishable Date
- 2025-07-09
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GV4PE
- Energy Efficiency Optimized
- False
- Halogen Free Status
- Halogen free plastic parts product
- Mechanical Durability
- 40000 cycles
- Operating Position
- any position
- Power Dissipation Per Pole
- 4.6 W
- Product Name
- TeSys GV4
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Total Lifecycle Carbon Footprint
- 90 kg CO2 eq.
- Ith Conventional Free Air Thermal Current
- 115 A IEC 60947-4-1
- Rated Current 1
- 115 A
- Pep Code
- ENVPEP1704004EN
- Pep Verification Date
- 2023-08-19
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 155 mm
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 0.4241
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 74.322
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 800.39
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 110.51
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2257.1
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1893.5
- Water Use (M3 Eq) Operational Energy Use [B6]
- 2.6298
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Electrical Durability5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
Motor Power Kw55-55 kW 500 V AC 50/60 Hz37-37 kW 400...415 V AC 50/60 Hz, 45-45 kW 400...415 V AC 50/60 Hz, 55-55 kW 400...415 V AC 50/60 Hz, 45-45 kW 500 V AC 50/60 Hz, 75-75 kW 500 V AC 50/60 Hz, 75-75 kW 660...690 V AC 50/60 Hz, 90-90 kW 660...690 V AC 50/60 Hz, 110-110 kW 660...690 V AC 50/60 Hz
RangeTeSys Deca
Trip Unit Technologythermal-magnetic, electronic
Connections TerminalsEverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexibleEverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid
Carbon Footprint Of The End Of Life Phase C1 To C43.7052338781741825, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A311 kg CO2 eq., 10.873320980286081
R Magnetic Tripping Current1955-1955 A
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Use Carbon Footprint74.322
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1903
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationmotor protection
Direct Connectorwithout
Fire Resistance960 °C IEC 60695-2-11
Magnetic Tripping Current1955-1955 A
Number Of Poles3P
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTeSys GV4
Software Versionv5.9.4
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Connections Terminals 119 Connections TerminalsEverLink BTR screw connectors
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %49
Width Nominal81 mm
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]74.223
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1893.5
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.4788
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]10.693
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]363.6
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]363.6
Environment Attributes Main
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 89.77012579645955
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
