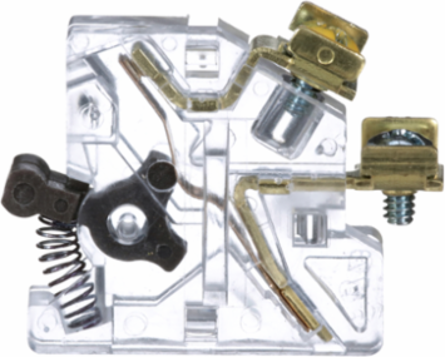

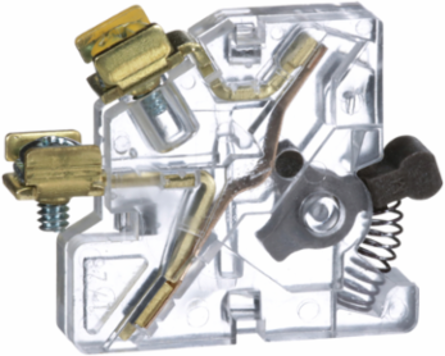

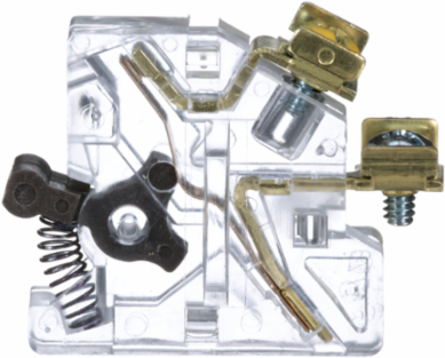

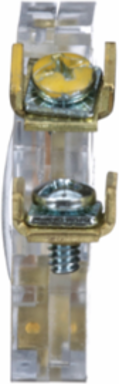

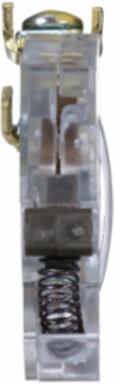

Square D 9999SX12 NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/cc82201eb84157453d9095cf9caf4fb98a1288c8-medium.png

NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

Square D 9999SX12 NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

MPN: 9999SX12
UPC: 785901879732
PPN: SCH-9999SX12

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$200.75/ EA

Qty:

Loading add to cart quantity...

Description

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is often used as part of the electrical interlock on reversing contactors and starters. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Specifications

Complementary

[Ue] Rated Operational Voltage: <= 600 V AC 50/60 Hz

Nema Size: 1 || 0 || 00 || 2

Auxiliary Contact Composition1 NC

Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.75 A 480 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A <= 600 V AC resistive control circuit UL 508

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Eu Rohs DirectiveNot compliant

Specifications

Range Of Product: type S

Product Destination: contactor || starter

Product Or Component TypeAuxiliary Contact Module

Environment

Product Certifications: CSA || UL recognized || UL listed

Downloads

Similar Products

Square D 8536SBG2V02S NEMA Motor Starter Size 0, 18A, 5HP, 3 Phase, NEMA 1 Enclosure

MPN

8536SBG2V02S

Available to Order

Company Stock:

CAD$969.03/EA

Qty:

Schneider Electric T36BN13G7 TeSys N Motor Starter 3 Pole Size 0 18A 120 VAC Open

MPN

T36BN13G7

Available to Order

Company Stock:

CAD$903.66/EA

Qty:

Schneider Electric LC1D12X7 TeSys Deca Contactor 3P 12A 600V AC 1 NO + 1 NC

MPN

LC1D12X7

Available to Order

Company Stock:

CAD$207.97/EA

Qty:

Schneider Electric LC1K1201F7 TeSys K Contactor, 3 Pole, 12A, 110V AC Coil, 45mm Width

MPN

LC1K1201F7

Available to Order

Company Stock:

CAD$96.78/EA

Qty:

Schneider Electric LP4K0901BW3 TeSys K 3P Contactor, 9A, 440V, 24V DC Coil, 1NC Aux Contact

MPN

LP4K0901BW3

Available to Order

Company Stock:

CAD$118.78/EA

Qty:

Schneider Electric LC1D258G7 TeSys Deca Contactor, 4P (2NO+2NC), 40A, 120V AC Coil, IP20

MPN

LC1D258G7

Available to Order

Company Stock:

CAD$488.91/EA

Qty:

Schneider Electric LC1D188G7 TeSys Deca Contactor 4P 32A 120V AC Coil, Screw Clamp Terminal

MPN

LC1D188G7

Available to Order

Company Stock:

CAD$321.63/EA

Qty:

Schneider Electric LC1D32F7 TeSys Deca Contactor 3P 32A 110V AC Coil, Screw Clamp Terminals

MPN

LC1D32F7

Available to Order

Company Stock:

CAD$337.14/EA

Qty:

Schneider Electric LC1D12B7 TeSys Deca Contactor, 3 Pole, 12A, 24V AC Coil, Compact Design

MPN

LC1D12B7

Available to Order

Company Stock:

CAD$207.97/EA

Qty:

Schneider Electric LC2D09B7 TeSys Deca Reversing Contactor, 3P, 9A, 24V AC, 90mm Width

MPN

LC2D09B7

Available to Order

Company Stock:

CAD$482.45/EA

Qty:

Schneider Electric LC1D32G7 TeSys Deca Contactor 3P 32A 120V AC Coil Compact Design

MPN

LC1D32G7

Available to Order

Company Stock:

CAD$337.14/EA

Qty:

Schneider Electric LC1D12G7 TeSys Deca Contactor, 3 Poles, 12A, 120V AC Coil, Compact 45mm Width

MPN

LC1D12G7

Available to Order

Company Stock:

CAD$207.97/EA

Qty:

Accessories

Square D 8536SAO12V01S NEMA Size 00 Motor Starter, 9A, 2HP, 24V AC, 3 Phase

MPN

8536SAO12V01S

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V02H308S NEMA Motor Starter Size 00, 9A, 2HP at 460VAC, 3 Pole, Open

MPN

8536SAO12V02H308S

Available to Order

Company Stock:

CAD$891.57/EA

Qty:

Square D 8536SAO12V02H30S NEMA Size 00 Motor Starter, 9A, 2HP, 3 Phase, Open

MPN

8536SAO12V02H30S

Available to Order

Company Stock:

CAD$901.46/EA

Qty:

Square D 8536SAO12V02S NEMA Motor Starter Size 00, 9A, 2HP 460V, 3 Phase, Open Device

MPN

8536SAO12V02S

Available to Order

Company Stock:

CAD$726.77/EA

Qty:

Square D 8536SAO12V03 NEMA Motor Starter Type S Size 00 9A 2HP at 460VAC 5kA SCCR

MPN

8536SAO12V03

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V06 NEMA Size 00 Non-Reversing Motor Starter, 9A, 2HP at 460VAC, 3 Pole

MPN

8536SAO12V06

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V08 NEMA Motor Starter Type S Size 00 9A 2HP 208VAC Coil 3 Pole

MPN

8536SAO12V08

Available to Order

Company Stock:

CAD$726.77/EA

Qty:

Square D 8536SBO2V02H30S NEMA Size 0 Motor Starter, 18A, 5HP, 3 Phase, 3 Pole, Open

MPN

8536SBO2V02H30S

Available to Order

Company Stock:

CAD$1089.32/EA

Qty:

Square D 8536SBO2V02S NEMA Motor Starter Size 0, 18A, 5HP, 3 Phase, Open

MPN

8536SBO2V02S

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Square D 8536SBO2V03 NEMA Type S Motor Starter, Size 0, 18A, 5HP at 460VAC, 3 Phase

MPN

8536SBO2V03

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Square D 8536SBO2V03H30 NEMA Motor Starter, Size 0, 18A, 5HP at 460VAC, 3 Phase, Open

MPN

8536SBO2V03H30

Available to Order

Company Stock:

CAD$1076.14/EA

Qty:

Square D 8536SBO2V06 NEMA Size 0 Motor Starter, 18A, 5HP at 460VAC, 3 Phase, Open

MPN

8536SBO2V06

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Loading carousel layout...

Square D 8536SAO12V01S NEMA Size 00 Motor Starter, 9A, 2HP, 24V AC, 3 Phase

MPN

8536SAO12V01S

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V02H308S NEMA Motor Starter Size 00, 9A, 2HP at 460VAC, 3 Pole, Open

MPN

8536SAO12V02H308S

Available to Order

Company Stock:

CAD$891.57/EA

Qty:

Square D 8536SAO12V02H30S NEMA Size 00 Motor Starter, 9A, 2HP, 3 Phase, Open

MPN

8536SAO12V02H30S

Available to Order

Company Stock:

CAD$901.46/EA

Qty:

Square D 8536SAO12V02S NEMA Motor Starter Size 00, 9A, 2HP 460V, 3 Phase, Open Device

MPN

8536SAO12V02S

Available to Order

Company Stock:

CAD$726.77/EA

Qty:

Square D 8536SAO12V03 NEMA Motor Starter Type S Size 00 9A 2HP at 460VAC 5kA SCCR

MPN

8536SAO12V03

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V06 NEMA Size 00 Non-Reversing Motor Starter, 9A, 2HP at 460VAC, 3 Pole

MPN

8536SAO12V06

Available to Order

Company Stock:

CAD$718.52/EA

Qty:

Square D 8536SAO12V08 NEMA Motor Starter Type S Size 00 9A 2HP 208VAC Coil 3 Pole

MPN

8536SAO12V08

Available to Order

Company Stock:

CAD$726.77/EA

Qty:

Square D 8536SBO2V02H30S NEMA Size 0 Motor Starter, 18A, 5HP, 3 Phase, 3 Pole, Open

MPN

8536SBO2V02H30S

Available to Order

Company Stock:

CAD$1089.32/EA

Qty:

Square D 8536SBO2V02S NEMA Motor Starter Size 0, 18A, 5HP, 3 Phase, Open

MPN

8536SBO2V02S

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Square D 8536SBO2V03 NEMA Type S Motor Starter, Size 0, 18A, 5HP at 460VAC, 3 Phase

MPN

8536SBO2V03

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Square D 8536SBO2V03H30 NEMA Motor Starter, Size 0, 18A, 5HP at 460VAC, 3 Phase, Open

MPN

8536SBO2V03H30

Available to Order

Company Stock:

CAD$1076.14/EA

Qty:

Square D 8536SBO2V06 NEMA Size 0 Motor Starter, 18A, 5HP at 460VAC, 3 Phase, Open

MPN

8536SBO2V06

Available to Order

Company Stock:

CAD$914.65/EA

Qty:

Loading carousel layout...

Square D 9999SX12 NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

Description

Specifications

Complementary

Offer Sustainability

Specifications

Environment

Downloads

Similar Products

Accessories

Need assistance finding the right item?

We can help! Connect with our Sales Team Today!

Square D 9999SX12 NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

Description

Specifications

Complementary

Offer Sustainability

Specifications

Environment

Downloads

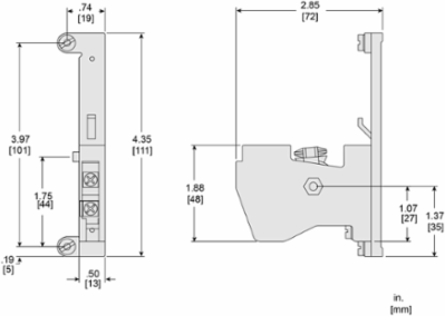

Technical Drawing
