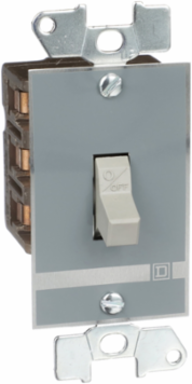

Square D 2510KO5 Manual Switch - Open - 2P - Toggle Operated - No Indicator - 600VAC
- MPN: 2510KO5
- UPC: 785901192688
- PPN: SCH-2510KO5
CAD
$74.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Open type fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Units are UL Recognized, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. Enclosed or open versions to suit most application environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 2.34 in |
|---|
Complementary Attributes
| Maximum Horse Power Rating | 2 hp 115 V DC2 hp 115 V AC, 1 hp 90 V DC1.5 hp 230 V DC10 hp 575 V AC, 3 hp 230 V AC7.5 hp 460 V AC |
|---|
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Certificate Agency | UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05 |
|---|---|
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| Product Kit Identifier | N |
| Control Type | toggle |
| Local Signalling | no indicator |
| Number Of Poles | 2P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | K |
| Sustainable Packaging | No |
| Width Nominal | 1.69 in |
| Nbr. Of Units In Pkg. | 1 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| China Rohs In Scope | No |
| Awg Gauge | AWG 14...AWG 10 copper |
| Electrical Connection | screw clamp terminals |
| Motor Starter Type | non reversing |
| Phase | 1 phase |
| Product Or Component Type | Single Unit Manual Switch |
| Returnability | No |
| Height Nominal | 4.13 in |
| [Ue] Rated Operational Voltage | 600 V AC230 V DC |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Eu Rohs Directive | Not compliant |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| Nema Degree Of Protection | not rated (open device) |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | K |
| Product Or Component Type | Single Unit Manual Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
