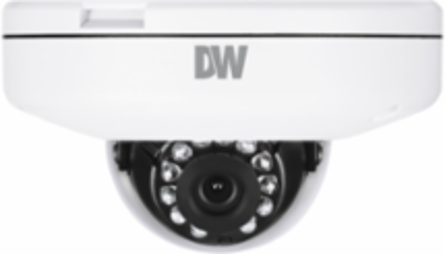

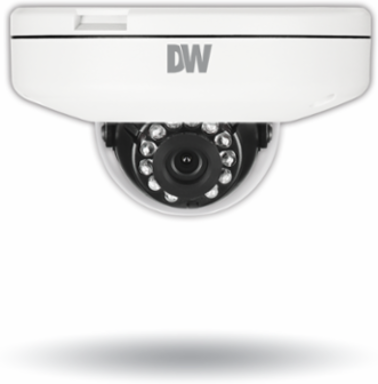

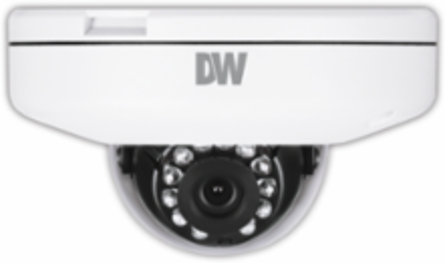

Digital Watchdog DWC-MF2Wi4TWDMP MEGApix® 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm and fixed lenses and DMP integration and IR
Digital Watchdog DWC-MF2Wi4TWDMP MEGApix® 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm and fixed lenses and DMP integration and IR
- MPN: DWC-MF2Wi4TWDMP
- UPC: 812226032457
- PPN: DWD-DWC-MF2Wi4TWDMP
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$724.59/ EA
Description
The DMP® series of MEGApix® IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any existing DMP system via the cloud. The camera comes in an IP66-rated and IK10-impact resistant ultra low-profile vandal dome housing.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 2 and DC12V
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK10 impact resistant
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.92 lbs (0.42kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 4.0W; PoE - max 5.5W
OPERATIONAL
- Shutter mode
- Auto
- Slow shutter
- 1/2
- Day / night
- Auto
- Flip
- Yes
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
LENS
- Focal length
- 4.0mm, F2.6
- Field of view (FoV)
- 86°
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- 2.1MP/1080p, 720p, D1
- Video bitrate
- 1Mbps
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
Video compression typeH.264
Frame rate10fps
Bitrate controlSmart bitrate control – CVBR
ProtocolTCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP
Video management softwareDMP®
- Image sensor
- 2.1MP/1080p 1/2.8” CMOS
Total pixels1945 (H) × 1109 (V)
