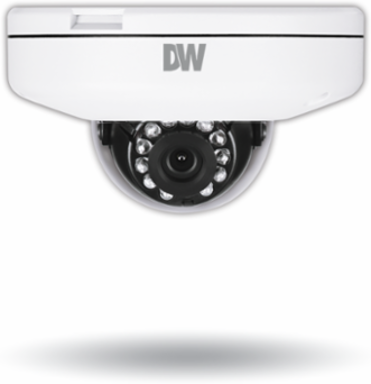

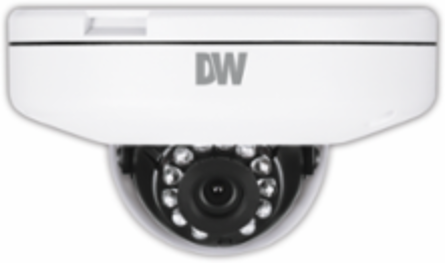

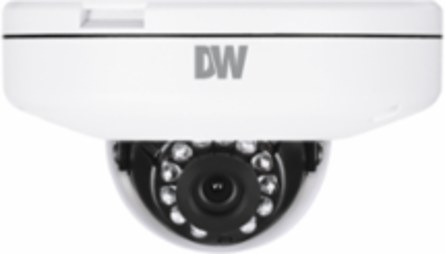

Digital Watchdog DWC-MF2Wi28TW MEGApix® IVA™ 2.1MP/1080p ultra low-profile vandal dome IP camera with 2.8mm and 4.0mm fixed lens options, color in near-total darkness and IR
Digital Watchdog DWC-MF2Wi28TW MEGApix® IVA™ 2.1MP/1080p ultra low-profile vandal dome IP camera with 2.8mm and 4.0mm fixed lens options, color in near-total darkness and IR
- MPN: DWC-MF2Wi28TW
- UPC: 812226032150
- PPN: DWD-DWC-MF2Wi28TW
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$737.70/ EA
Description
This MEGApix® IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes 2.8mm and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP66-rated, IK-10 impact-resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MF2Wi28TW)
- 4.0mm fixed lens (DWC-MF2Wi4TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.92 lbs (0.42kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 4W; PoE - max 5.5W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.8mm, F2.0 (; DWC-MF2Wi28TW), 4.0; mm, F2.6 (; DWC-MF2Wi4TW)
- Field of view (FoV)
- 115° (DWC-MF2Wi28TW), 86; ° (DWC-MF2Wi28TW)
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 2.1MP/1080p 1/2.8” Star-Light Plus CMOS
- Video output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels1945 (H) × 1109 (V)
