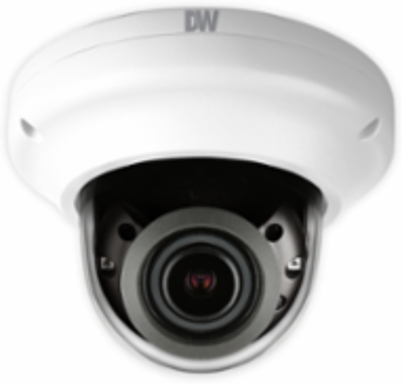

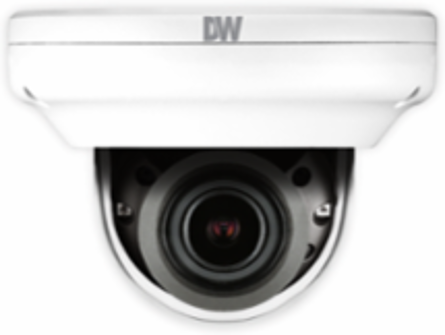

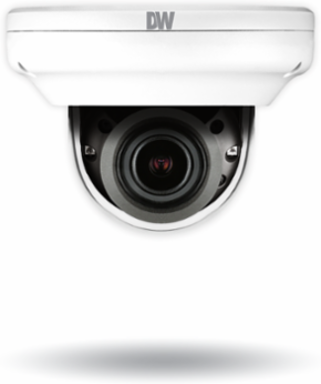

Digital Watchdog DWC-MVC8WiATW MEGApix IVA™ 4K Vandal Dome IP Camera, 2.7~13.5mm Lens, 120dB WDR
- MPN: DWC-MVC8WiATW
- UPC: 812226032112
- PPN: DWD-DWC-MVC8WiATW
CAD
$1172.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience cutting-edge surveillance technology with the MEGApix IVA™ 4K low-profile vandal dome IP camera from Digital Watchdog. Engineered for resilience and superior image quality, this camera features a vari-focal p-iris lens with motorized zoom and auto-focus, ensuring exceptional clarity in both daylight and near-total darkness, thanks to its advanced infrared capabilities. With a robust IP67 rating and IK10 impact resistance, it is designed to withstand harsh environments while providing reliable performance.
The camera supports a wide range of video management protocols and offers intelligent video analytics, making it an ideal choice for comprehensive security solutions. With dual-stream capabilities and a maximum resolution of 4K, it delivers high-quality video footage at various bitrates, while the integrated privacy zones and alarm notifications enhance its functionality. Whether for commercial or residential use, this camera combines durability, advanced features, and ease of integration, making it a valuable asset for any security system.
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome, CleanView™;dome treatment
- Warranty
- 5 year warranty
Weight1.14 lbs (0.52 kg)
ELECTRICAL
- Power requirement
- DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
Power consumptionDC12V - max 9W; PoE - max 11.52W
OPERATIONAL
- Intelligent Video Analytics
- Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left
- Shutter speed
- 1/15 ~ 1/32,000
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Mirror and flip
- Yes
- Memory slot
- Micro SD / SDHC / SDXC (card not included)
Shutter modeAuto, manual, anti-flicker, slow shutter
Slow shutter1/2,1/3,1/5,1/6,1/7.5, 1/10
Day / nightAuto, day (color), night (B/W)
Wide dynamic range (WDR)True WDR (D-WDR) On, Off
Privacy zones16 programmable privacy masks
Alarm notificationsNotifications via e-mail, FTP, alarm output and SD card recording
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.7 ~ 13.5mm, F1.4
- HFOV / VFOV
- 33.1°~90.3°; /; 18.9°~49°
- Optical zoom
- x5 optical zoom
Lens typeVari-focal p-iris lens with motorized-zoom and auto-focus
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrateH.264 / H.265 - 32Kbps ~ 14Mbps MJPEG - 1Mbps ~ 40Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
- Image sensor
- 4K 1/2.8” CMOS
- Active pixels
- 3840 (H) X 2160 (V)
Total pixels3864(H) x 2228(V)
Test Monitor Video OutputLocal video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
