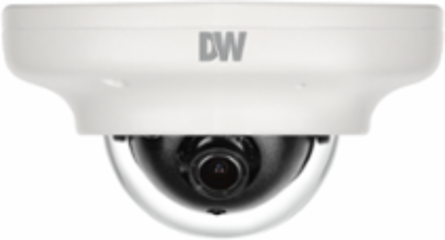

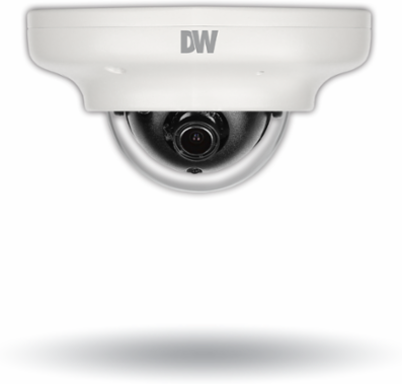

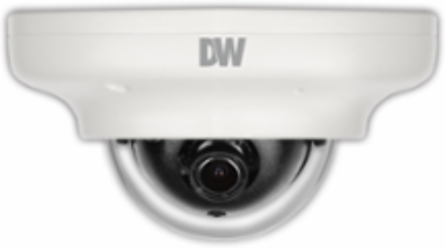

Digital Watchdog DWC-V7253 Star-Light™ UHDoC® 2.1MP/1080p ultra low-profile vandal dome camera with 3.6mm fixed lens
Digital Watchdog DWC-V7253 Star-Light™ UHDoC® 2.1MP/1080p ultra low-profile vandal dome camera with 3.6mm fixed lens
- MPN: DWC-V7253
- UPC: 813379019791
- PPN: DWD-DWC-V7253
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$286.89/ EA
Description

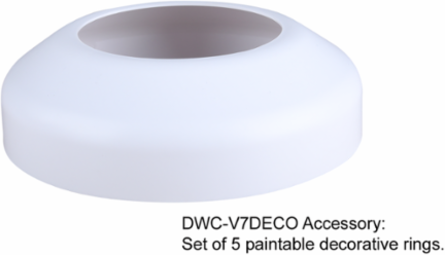

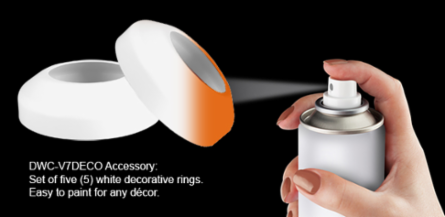

Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. The vandal dome cameras are IP67 rated and discrete in style. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high-resolution surveillance solution. Set of five (5) white decorative rings for our MEGApix® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features
- Universal HD over Coax® Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/2.7" Image Sensor at Real-time 30fps
- 3.6mm Fixed Lens
- Digital Wide Dynamic Range (D-WDR)
- OSD Control Via Coaxial (UTC)
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Auto White Balance (AWB)
- NDAA compliant
- IP66 Certified Weather and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
Specifications
Specifications
- Image sensor
- 2.1MP/1080p 1/2.7” CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Resolution
- 1920 x 1080 (1080p)
- Video output
- HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
- Lens type
- Fixed lens
- Shutter speed
- 1/30-1/30,000
- Star-Light (sense-up)
- Off, x2 – x30
- Smart DNR™ 3D digital noise reduction
- Off, low, middle, high
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- 0~15
- Privacy zones
- 4 programmable privacy zones
- Gamma
- 0.45 ~ 0.75
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66 certified weather and tamper resistant
- Other certifications
- FCC, CE, ROHS
- Power consumption
- DC12V - 1.92W
- Dimensions
- 4.13' x 2.39" (105 x 60.7 mm)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
Focal length3.6mm
Shutter modeAuto, manual
BacklightOn, off
Dynamic range compressor (DRC)Off, on, auto
White balanceAuto / push / ATW / manual
Mirror / flipYes
Motion detectionYes
SharpnessOn, off
De-fogOn, off
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
Power requirementDC 12V
MaterialAluminum vandal housing, polycarbonate dome
Weight0.95 lbs (0.43kg)
