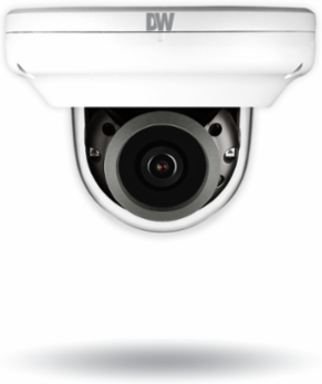

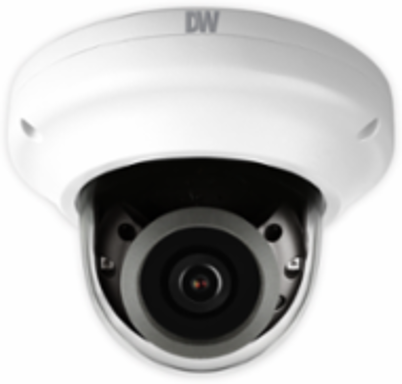

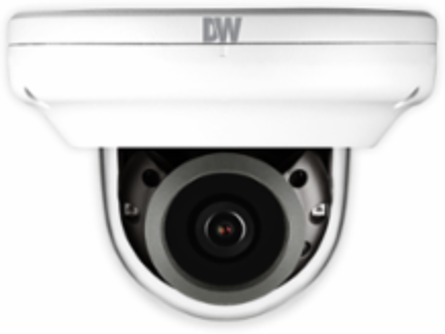

Digital Watchdog DWC-MVC8Wi28TW MEGApix IVA™ 4K Vandal Dome IP Camera, 2.8mm Lens, IP67, IK10
- MPN: DWC-MVC8Wi28TW
- UPC: 813379010330
- PPN: DWD-DWC-MVC8Wi28TW
CAD
$1093.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience cutting-edge surveillance technology with the MEGApix IVA™ 4K low-profile vandal dome IP camera from Digital Watchdog. Designed for durability and high performance, this camera features a 2.8mm fixed lens that captures stunning 4K resolution video at real-time frame rates of up to 30fps, ensuring clarity and detail in every shot. With advanced capabilities such as True Wide Dynamic Range (WDR), Smart DNR™ 3D digital noise reduction, and Star-Light Plus™ technology, it excels in both bright and low-light conditions, delivering color images even in near-total darkness.
Built to withstand the elements, the IP67-rated housing ensures dust-tight and waterproof operation, while the IK10 impact resistance provides added security against vandalism. This camera supports dual-streaming with multiple video compression options, making it versatile for various surveillance needs. With intelligent video analytics features, including motion detection and programmable privacy zones, it offers enhanced monitoring capabilities, making it an ideal choice for both commercial and residential security applications.
Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- CleanView™ hydrophobic dome coating repels water, dust and grease
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome, CleanView™;dome treatment
- Warranty
- 5 year warranty
Weight1.14 lbs (0.52 kg)
ELECTRICAL
- Power requirement
- DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
Power consumptionDC12V - max 10W; PoE - max 13W
OPERATIONAL
- Intelligent Video Analytics
- Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left
- Shutter speed
- 1/15 ~ 1/32,000
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Mirror and flip
- Yes
- Memory slot
- Micro SD / SDHC / SDXC (card not included)
Shutter modeAuto, manual, anti-flicker, slow shutter
Slow shutter1/2,1/3,1/5,1/6,1/7.5, 1/10
Day / nightAuto, day (color), night (B/W)
Wide dynamic range (WDR)True WDR (D-WDR) On, Off
Privacy zones16 programmable privacy masks
Alarm notificationsNotifications via e-mail, FTP, alarm output and SD card recording
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.8mm, F2.0
- HFOV / VFOV
- 105.5°; /; 56.3°
Lens typeFixed lens
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrateH.264 / H.265 - 32Kbps ~ 14Mbps MJPEG - 1Mbps ~ 40Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
- Image sensor
- 4K 1/2.8” CMOS
- Active pixels
- 3840 (H) X 2160 (V)
Total pixels3952 (H) x 2320 (V);
Test Monitor Video OutputLocal video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
