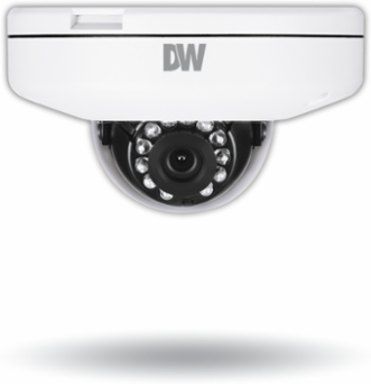

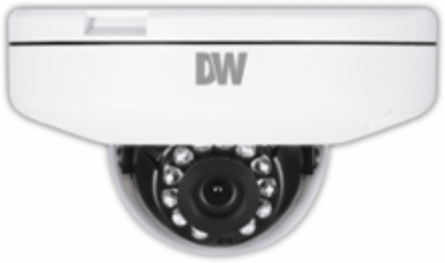

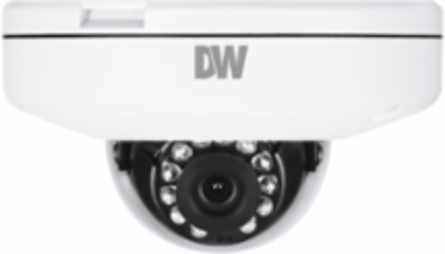

Digital Watchdog DWC-MF5Wi6TW MEGApix IVA 5MP Ultra Low-Profile Vandal Dome IP Camera, 4.0mm/6.0mm/8.0mm Lenses, IK10, IP66, Star-Light Plus™
Digital Watchdog DWC-MF5Wi6TW MEGApix IVA 5MP Ultra Low-Profile Vandal Dome IP Camera, 4.0mm/6.0mm/8.0mm Lenses, IK10, IP66, Star-Light Plus™
- MPN: DWC-MF5Wi6TW
- PPN: DWD-DWC-MF5Wi6TW
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$743.44/ EA
Description
Experience unparalleled surveillance capabilities with the MEGApix® IVA™ 5MP ultra low-profile vandal dome IP camera from Digital Watchdog. Engineered for resilience and performance, this camera features a robust aluminum housing and polycarbonate dome, ensuring it withstands the rigors of outdoor environments with an IK10 impact resistance rating and IP66 water and dust protection. With its advanced 5MP image sensor and Star-Light Plus™ technology, it delivers stunning color images even in near-total darkness, while the true wide dynamic range (WDR) ensures clear visibility in challenging lighting conditions.
This versatile camera supports dual-streaming capabilities, allowing for simultaneous video feeds at different resolutions, and offers intelligent video analytics to enhance security monitoring. The inclusion of a micro SD card slot for local recording, along with various alarm notifications and two-way audio, makes it a comprehensive solution for any security system. Backed by a five-year warranty, the MEGApix® IVA™ camera is designed for seamless integration with DW Spectrum® IPVMS, providing users with a powerful tool for maintaining safety and security.
Features
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens (DWC-MF5Wi4TW)
- 6.0mm fixed lens (DWC-MF5Wi6TW) (coming soon)
- 8.0mm fixed lens (DWC-MF5Wi8TW) (coming soon)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.92 lbs (0.42kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 5.9W; PoE - max 7.2W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 4.0mm, F2.0 (DWC-MF5Wi4TW); 6.0mm, F2.0 (DWC-MF5Wi6TW); (coming soon); ; 8.0mm, F2.0 (DWC-MF5Wi8TW) (coming soon);
- Field of view (FoV)
- 82.3° (DWC-MF5Wi4TW); 51.9° (DWC-MF5Wi6TW); (coming soon); ; 37.8° (DWC-MF5Wi8TW) (coming soon)
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
- Image sensor
- 5MP 1/2.8” Star-Light Plus CMOS
- Video output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels2592(H) X 1944(V)
