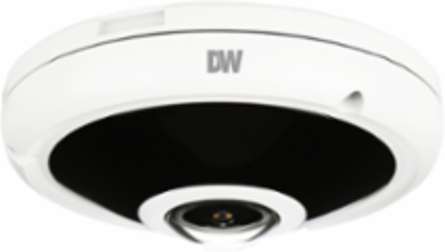

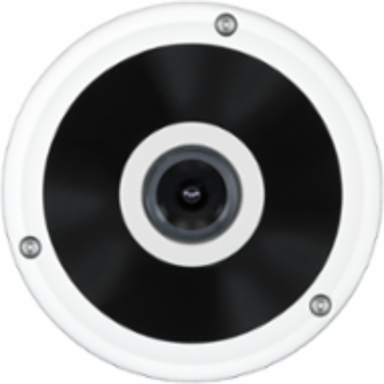

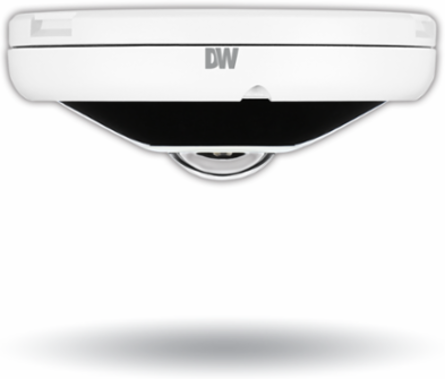

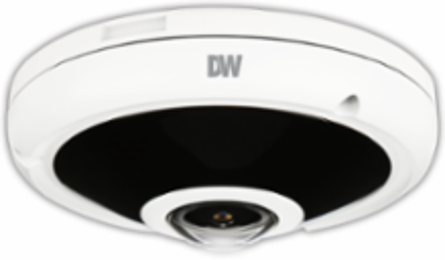

Digital Watchdog DWC-PVF9Di2TW MEGApix® Pano IVA™ 9MP vandal fisheye IP camera with 2.1mm fisheye lens, color in near-total darkness and IR
Digital Watchdog DWC-PVF9Di2TW MEGApix® Pano IVA™ 9MP vandal fisheye IP camera with 2.1mm fisheye lens, color in near-total darkness and IR
- MPN: DWC-PVF9Di2TW
- UPC: 812226032310
- PPN: DWD-DWC-PVF9Di2TW
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1590.98/ EA
Description
MEGApix® Pano IVA™ 9MP 360° view fisheye outdoor IP camera with IR is your gateway to powerful video analytics features. It is NDAA compliant and can monitor an entire area, providing ultimate ROI. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera’s 2.1mm fisheye lens provides edge-to-edge image clarity producing 9MP panoramic images at real-time 30fps. Star-Light Plus™ color in near-total darkness technology ensures quality video in any lighting condition. The camera also offers simultaneous H.265/H.264/MJPEG codec support in an IP66 vandal-resistant, discrete housing. The camera is optimized to work with the DW Spectrum™ IPVMS instant dewarping feature.
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP66-rated weather and tamper-resistant
- Other certifications
- FCC, CE, ROHS
Operating humidityLess than 90% (non-condensing)
IK ratingIK9 impact-resistant
MECHANICAL
- Material
- Aluminum vandal fisheye housing, polycarbonate dome
- Weight
- 1.1 lbs (0.5kg)
Dimensions4.9" x 1.88” (125 x 48mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not included)
Power consumptionDC12V - max 8.5W PoE - max 10W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- Off, x2, x3, x5, x6, x7.5, x10
- Day / night
- Auto, day (color), night (B/W)
- Backlight compensation (BLC)
- Yes
- Mirror and flip
- Yes
- Alarm notifications
- Notifications via e-mail, FTP server, alarm output activation or SD card recording
Shutter speed1/15 ~ 1/32,000sec
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
White balanceYes
Privacy zones16 programmable privacy masks
Memory slotMicro SD/SDHC/SDXC (card not included).
I/O
- Audio in / out
- 1 input (1.0Vms, 3K ohm) / 1 output
- Audio compression
- G.711
Alarm In/Out1 input / 1 output
LENS
- Focal length
- 2.1mm, F2.2
- Field of view (FoV)
- 185°
Lens typeFisheye lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
ONVIF conformanceYes
- Image sensor
- 12.4MP 1/1.7" Star-Light Plus CMOS
- S/N ratio
- 50dB
Total pixels4000(H) X 3000(V)
Maximum resolution9MP (3008 x 3000)
