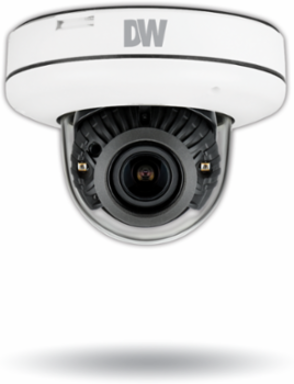

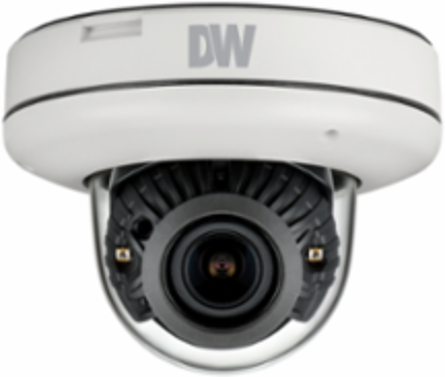

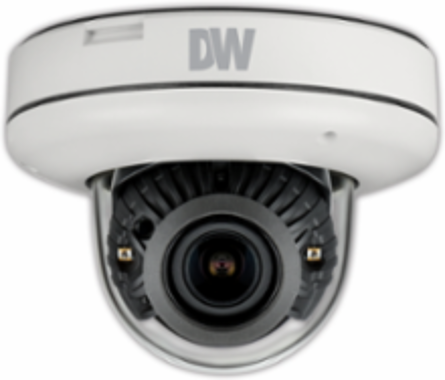

Digital Watchdog DWC-MV82WiATW MEGApix IVA™ 2.1MP/1080p Low-Profile Vandal Dome Camera, 2.8~12mm Lens, IR 100ft
Digital Watchdog DWC-MV82WiATW MEGApix IVA™ 2.1MP/1080p Low-Profile Vandal Dome Camera, 2.8~12mm Lens, IR 100ft
- MPN: DWC-MV82WiATW
- PPN: DWD-DWC-MV82WiATW
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$817.21/ EA
Description
Experience cutting-edge surveillance technology with this low-profile vandal dome IP camera, designed to deliver exceptional clarity and reliability in various environments. Featuring a 2.1MP/1080p image sensor and a versatile 2.8~12mm vari-focal p-iris lens, this camera boasts motorized zoom and auto-focus capabilities, ensuring sharp images even in challenging lighting conditions. With advanced features such as True Wide Dynamic Range (WDR), Smart DNR™ 3D digital noise reduction, and Star-Light Plus™ technology, it excels in providing color images in near-total darkness while maintaining high performance during the day.
Built with a robust aluminum vandal housing and an IK10-rated impact-resistant design, this camera is engineered to withstand harsh conditions, making it ideal for both indoor and outdoor applications. The device supports Power over Ethernet (PoE) for simplified installation and features dual-streaming capabilities, allowing for flexible video management through DW Spectrum® IPVMS. With a range of intelligent video analytics options and programmable privacy zones, this camera not only enhances security but also offers seamless integration into existing systems, backed by a generous 5-year warranty for peace of mind.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- CleanView™ hydrophobic dome coating repels water, dust and grease
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight1.12 lbs (0.51kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 6.5W; PoE - max 8.5W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.8 ~ 12mm, F1.4
- HFOV / VFOV
- 96° ~ 35° / 51; °~20°
- Optical zoom
- x4.2 optical zoom
Lens typeVari-focal p-iris lens with motorized-zoom and auto-focus
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
- Image sensor
- 2.1MP/1080p 1/2.8” CMOS
- Video output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels1945 (H) × 1109 (V)
