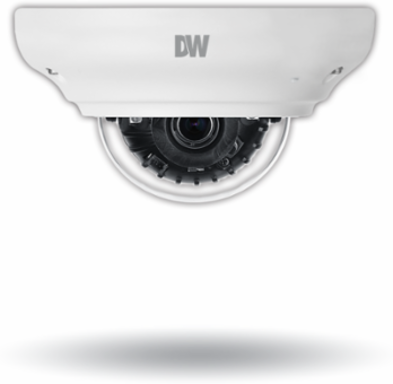

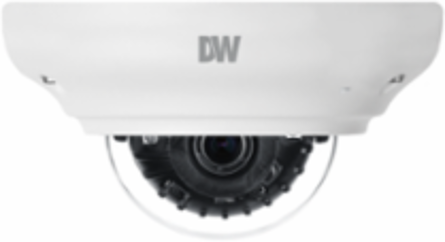

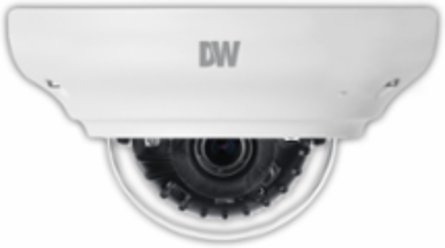

Digital Watchdog DWC-MV72Wi4ATW MEGApix IVA™ 2.1MP/1080p ultra low-profile vandal dome IP camera with 2.8mm and 4.0mm fixed lenses, microphone built-in and color in near-total darkness and IR
Digital Watchdog DWC-MV72Wi4ATW MEGApix IVA™ 2.1MP/1080p ultra low-profile vandal dome IP camera with 2.8mm and 4.0mm fixed lenses, microphone built-in and color in near-total darkness and IR
- MPN: DWC-MV72Wi4ATW
- UPC: 812226032174
- PPN: DWD-DWC-MV72Wi4ATW
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$645.08/ EA
Description
This MEGApix® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps and the convenience of audio input through built-in microphone. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes 2.8 and 4.0mm fixed lens options, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, all in an IP67-rated, IK-10 impact resistant ultra low-profile vandal dome housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. Set of five (5) white decorative rings for our MEGApix® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV72Wi28ATW)
- 4.0mm fixed lens (DWC-MV72Wi4ATW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR™ with intelligent camera sync
- Audio input through built-in microphone
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.79 lbs (0.36kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 3.7W; PoE - max 5.5W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio compression
- G.711
LENS
- Focal length
- 2.8mm, F2.0 (DWC-MV72Wi28ATW), 4.0; mm, F2.6 (DWC-MV72Wi4ATW);
- Field of view (FoV)
- 111° (DWC-MV72Wi28ATW); 86° (DWC-MV72Wi4ATW)
Lens typeFixed lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 2.1MP/1080p 1/2.8” Star-Light Plus CMOS
- Test Monitor Video Output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels1945 (H) × 1109 (V)
