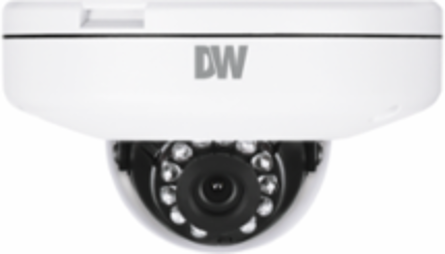

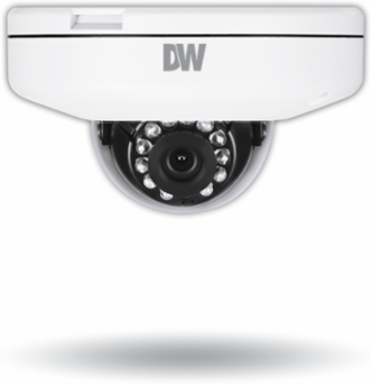

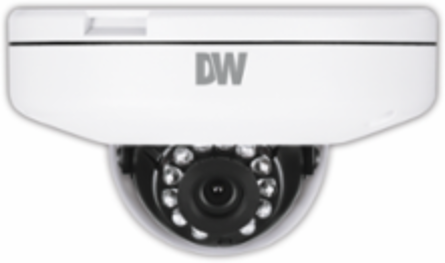

Digital Watchdog DWC-MF5Wi8TW MEGApix IVATM 5MP Ultra Low-Profile Vandal Dome Camera, 4-8mm Lenses, IP66, IK10
- MPN: DWC-MF5Wi8TW
- UPC: 812226032266
- PPN: DWD-DWC-MF5Wi8TW
CAD
$772.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience cutting-edge surveillance technology with the MEGApix IVATM 5MP ultra low-profile vandal dome IP camera from Digital Watchdog. Designed for durability and versatility, this camera features a robust aluminum vandal housing and a polycarbonate dome, making it ideal for both indoor and outdoor environments. With its advanced Star-Light PlusTM technology, it delivers vibrant color images even in near-total darkness, while the True Wide Dynamic Range (WDR) ensures clear visibility in challenging lighting conditions.
Equipped with a 5MP image sensor and capable of real-time 30fps video recording, this camera supports multiple fixed lens options (4.0mm, 6.0mm, and 8.0mm) to suit your specific monitoring needs. The device also boasts a host of smart features, including Intelligent Video Analytics (IVA), motion detection, and programmable privacy zones, all seamlessly integrated with DW Spectrum IPVMS for enhanced control and management. With an IP66 rating for dust and water resistance, along with IK10 impact resistance, this camera is built to withstand the elements while providing reliable performance.
Features
- 5MP 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 4.0mm fixed lens (DWC-MF5Wi4TW)
- 6.0mm fixed lens (DWC-MF5Wi6TW) (coming soon)
- 8.0mm fixed lens (DWC-MF5Wi8TW) (coming soon)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
|---|---|
| IK rating | IK10 impact-resistant |
| Other certifications | CE, FCC, RoHS |
| Operating humidity | 10–90% RH (non–condensing) |
|---|---|
| IP rating | IP66-rated |
MECHANICAL
| Material | Aluminum vandal housing, polycarbonate dome |
|---|---|
| Warranty | 5 year warranty |
| Weight | 0.92 lbs (0.42kg) |
|---|
ELECTRICAL
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
|---|
| Power consumption | DC12V - max 5.9W; PoE - max 7.2W |
|---|
OPERATIONAL
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
|---|---|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Day / night | Auto, day (color), night (B/W) |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Privacy zones | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording |
| Shutter speed | 1/15 ~ 1/32,000 |
|---|---|
| Auto gain control | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) dB | 120dB |
| Mirror and flip | Yes |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
I/O
| Audio in / out | 1 input / 1 output |
|---|---|
| Alarm in / out | 1 input / 1 output |
| Audio compression | G.711 |
|---|
LENS
| Focal length | 4.0mm, F2.0 (DWC-MF5Wi4TW); 6.0mm, F2.0 (DWC-MF5Wi6TW); (coming soon); ; 8.0mm, F2.0 (DWC-MF5Wi8TW) (coming soon); |
|---|---|
| Field of view (FoV) | 82.3° (DWC-MF5Wi4TW); 51.9° (DWC-MF5Wi6TW); (coming soon); ; 37.8° (DWC-MF5Wi8TW) (coming soon) |
| Lens type | Fixed lens |
|---|---|
| IR distance | 50ft range |
NETWORK
| LAN | RJ45 (10/100Base-T) |
|---|---|
| Frame rate | Up to 30fps at all resolutions |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| ONVIF conformance | Yes |
| Video management software | DW Spectrum® IPVMS |
| Video compression type | H.265, H.264, MJPEG |
|---|---|
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Streaming capability | Dual-stream at different rates and resolutions |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Web viewer | OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Image sensor | 5MP 1/2.8” Star-Light Plus CMOS |
|---|---|
| Video output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total pixels | 2592(H) X 1944(V) |
|---|
