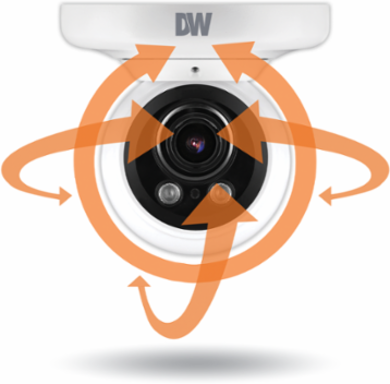

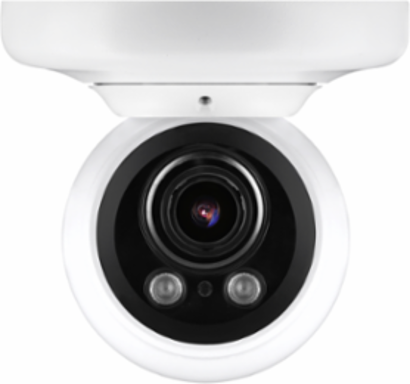

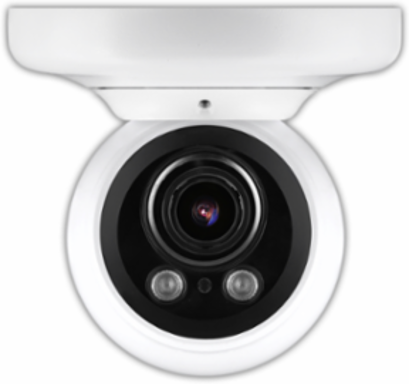

Digital Watchdog DWC-MVA2WiAT MEGApix IVA™ 2.1MP/1080p Vandal Ball IP Camera, 2.7~13.5mm Lens, IP67
Digital Watchdog DWC-MVA2WiAT MEGApix IVA™ 2.1MP/1080p Vandal Ball IP Camera, 2.7~13.5mm Lens, IP67
- MPN: DWC-MVA2WiAT
- PPN: DWD-DWC-MVA2WiAT
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$768.03/ EA
Description
The MEGApix® IVA™ vandal ball IP camera from Digital Watchdog is designed to provide exceptional surveillance capabilities with its advanced features and robust construction. This camera boasts a 2.1MP/1080p resolution, ensuring clear and detailed images, while its vari-focal p-iris lens with motorized zoom and auto-focus allows for versatile installation options and precise adjustments. With a remarkable IR distance of 100 feet and Star-Light Plus™ technology, it excels in low-light conditions, delivering color images even in near-total darkness.
Built to withstand the elements, the camera is IP67-rated for dust and water resistance, and its IK10-rated housing offers protection against impacts, making it ideal for both indoor and outdoor applications. The integration of advanced video analytics, including motion detection and programmable privacy zones, enhances its functionality while reducing false alarms. Additionally, the camera supports multiple video compression formats and dual-streaming capabilities, providing flexibility in video management and storage. With a 5-year warranty, this camera is a reliable choice for comprehensive security solutions.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- Vandal ball housing reduces IR reflection
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal ball housing
- Warranty
- 5 year warranty
Weight1.87 lbs (0.85kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 6.4W; PoE - max 7.6W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP and alarm output
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
LENS
- Focal length
- 2.7 ~ 13.5mm, F1.8
- Field of view (FoV)
- 93.6° ~ 34.1°
- Optical zoom
- x5 optical zoom
Lens typeVari-focal p-iris lens with motorized-zoom and auto-focus
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 2.1MP/1080p 1/2.8” CMOS
Total pixels1945 (H) × 1109 (V)
