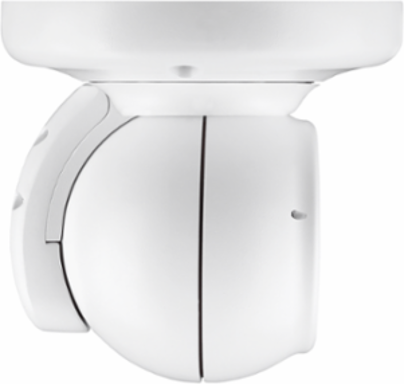

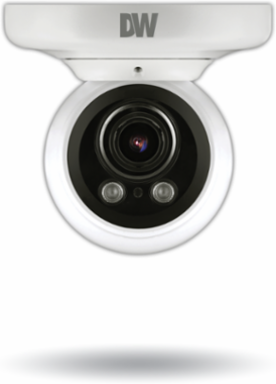

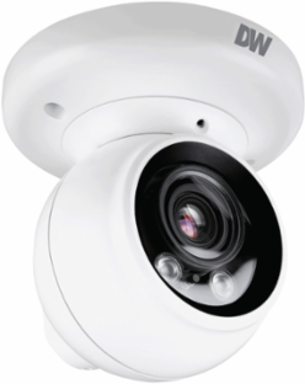

Digital Watchdog DWC-VA883WTIR 4K Vandal Ball Camera, 3.6-10mm Vari-focal Lens, IP67 Waterproof, Auto-Focus
- MPN: DWC-VA883WTIR
- UPC: 812226031405
- PPN: DWD-DWC-VA883WTIR
CAD
$651.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience unparalleled surveillance capabilities with the Star-Light Plus™ vandal ball camera from Digital Watchdog. This advanced security solution features a 3.6~10mm vari-focal p-iris lens, equipped with motorized zoom and auto-focus, ensuring crystal-clear images even in near-total darkness thanks to its innovative Star-Light Plus™ technology. Designed to withstand harsh environments, the camera boasts an IK10-rated impact resistance and an IP67 rating, making it both dust-tight and waterproof.
With a maximum resolution of 3840 x 2160 at 15 frames per second, along with features such as true wide dynamic range (WDR) and smart 3D digital noise reduction, this camera delivers exceptional image quality in varying lighting conditions. The device is also equipped with advanced functionalities like motion detection, privacy zones, and intelligent IR capabilities, providing comprehensive monitoring solutions for any setting. Backed by a five-year warranty, the Star-Light Plus™ camera is a reliable choice for those seeking high-performance surveillance technology.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 80' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP67 rated
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
MECHANICAL
- Material
- Aluminum vandal ball housing
- Weight
- 1.58lbs (0.72kg)
Dimensions4.92" x 4.8" (125 x 122 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC12V/24VAC dual voltage
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Highlight masking exposure (HME)
- Yes
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 60dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off-x32 (disabled at 4K)
Wide dynamic range (WDR) dB120dB
White balanceYes
Dynamic range compression (DRC)Yes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
LENS
- Focal length
- 3.6 ~ 10mm
- Field of view (FoV)
- 98.4 - 45.7°
Lens typeVari-focal p-iris lens with motorized zoom and auto-focus
IR distance80ft range
- Image sensor
- 8MP 1/1.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
- Resolution
- Max 3840 x 2160
- Video output
- 4K @ 15fps, 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
Active pixels3864(H) x 2176(V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
