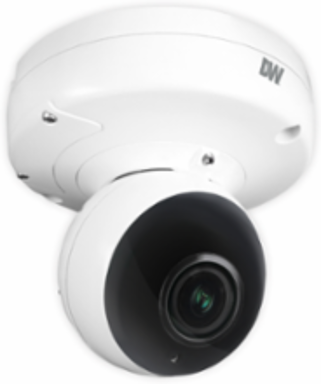

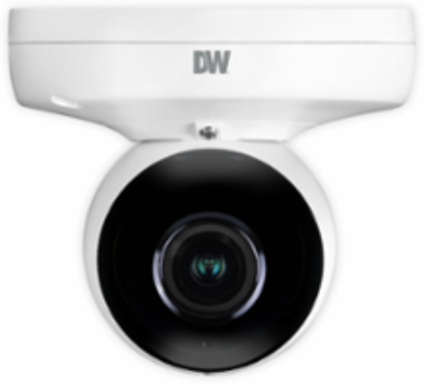

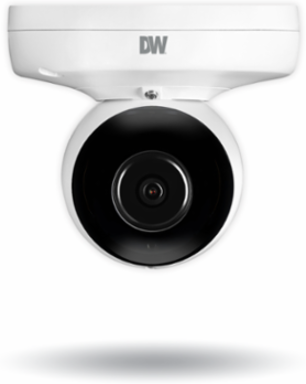

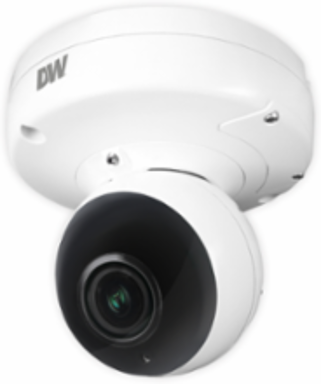

Digital Watchdog DWC-MVD8Wi28TW MEGApix IVA™ 4K Galaxy™ Vandal Ball IP Camera, 2.8mm Lens, IP66, 100ft IR
- MPN: DWC-MVD8Wi28TW
- UPC: 813379011139
- PPN: DWD-DWC-MVD8Wi28TW
CAD
$1115.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience unparalleled surveillance capabilities with the MEGApix IVA™ 4K Galaxy™ vandal ball IP camera, designed by Digital Watchdog. This advanced camera features a robust aluminum vandal ball housing and is equipped with a 2.8mm fixed lens, providing exceptional image clarity in both day and night conditions, including near-total darkness thanks to its Star-Light Plus™ technology. With a 4K resolution image sensor and true wide dynamic range (WDR), this camera captures detailed footage at real-time 30fps, ensuring that every critical moment is recorded with precision.
The camera's IP66 rating guarantees dust-tight and water-resistant performance, making it ideal for outdoor use in various environmental conditions. It also includes a range of smart features such as 3D digital noise reduction, programmable privacy zones, and intelligent video analytics, enhancing its functionality for sophisticated security needs. With dual-streaming capabilities and multiple video compression options, this camera seamlessly integrates into existing security systems, providing reliable performance and peace of mind. Additionally, its 5-year warranty reflects the confidence in its durability and effectiveness, making it a smart choice for comprehensive surveillance solutions.
Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- Galaxy™ vandal ball camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK9 impact resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal ball housing
- Warranty
- 5 year warranty
Weight1.87 lbs (0.85kg)
ELECTRICAL
- Power requirement
- DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP and alarm output
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.8mm, F2.0
- HFoV / VFoV
- 105.5° / 56.3°
Lens typeFixed lens
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Bitrate controlMulti-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
IPIPv4
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 4K 1/2.8” CMOS
- Active pixels
- 3840 (H) X 2160 (V)
- Test Monitor Video Output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels3864(H) x 2228(V)
S/N ratio50dB
