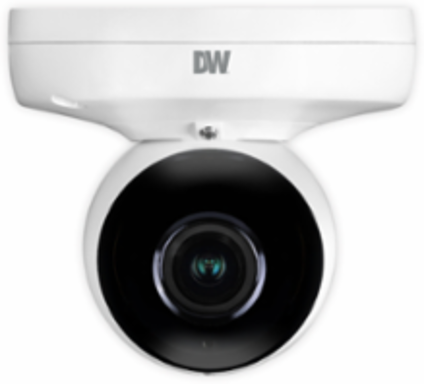

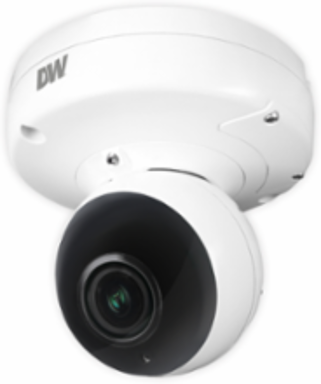

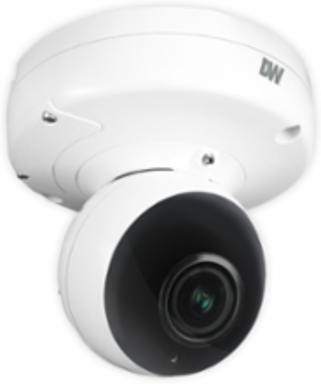

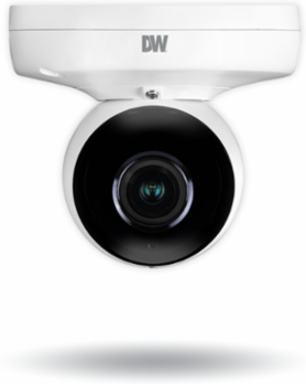

Digital Watchdog DWC-MVD8WiATW MEGApix IVA™ 4K Galaxy™ vandal ball IP camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom, auto-focus, color in near-total darkness and IR
Digital Watchdog DWC-MVD8WiATW MEGApix IVA™ 4K Galaxy™ vandal ball IP camera with 2.7~13.5mm vari-focal p-iris lens with motorized zoom, auto-focus, color in near-total darkness and IR
- MPN: DWC-MVD8WiATW
- UPC: 813379010811
- PPN: DWD-DWC-MVD8WiATW
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1221.31/ EA
Description
This MEGApix® IVA™ Galaxy IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 4K resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera features Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, simultaneous H.265/H.264/MJPEG codec support and a 2.7~13.5mm vari-focal auto-focus lens with motorized zoom and 5x optical zoom. The Galaxy weather-resistant vandal ball cameras are IP66-rated, eliminate IR reflections, offer easy angle adjustment for optimal image quality and easy access to the camera's control board from the base of the camera. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features
- 4K 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.7~13.5mm vari-focal p-iris lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync
- Galaxy™ vandal ball camera
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 9-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK9 impact resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal ball housing
- Warranty
- 5 year warranty
Weight1.87 lbs (0.85kg)
ELECTRICAL
- Power requirement
- DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP and alarm output
Shutter speed1/15 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.7 ~ 13.5mm, F1.4
- HFoV / VFoV
- 33.1°~90.3° / 18.9°~49°
- Optical zoom
- x5 optical zoom
Lens typeVari-focal p-iris lens with motorized-zoom and auto-focus
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Bitrate controlMulti-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
IPIPv4
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 4K 1/2.8” CMOS
- Active pixels
- 3840 (H) X 2160 (V)
- Test Monitor Video Output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels3864(H) x 2228(V)
S/N ratio50dB
