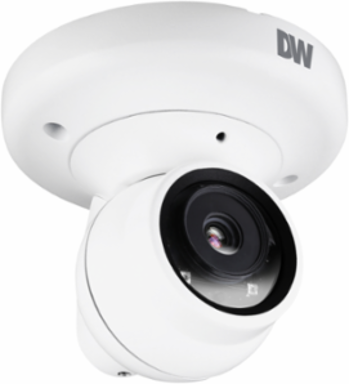

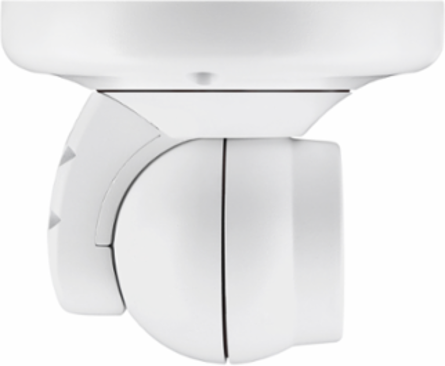

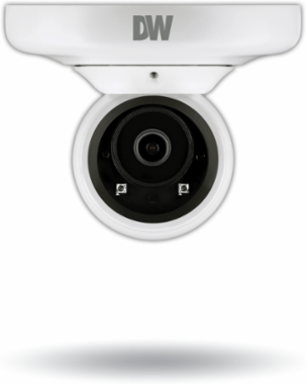

Digital Watchdog DWC-VA853WTIR Star-Light Plus™ UHDoC® 4K vandal ball camera with 2.8mm fixed lens, color in near-total darkness and IR
Digital Watchdog DWC-VA853WTIR Star-Light Plus™ UHDoC® 4K vandal ball camera with 2.8mm fixed lens, color in near-total darkness and IR
- MPN: DWC-VA853WTIR
- UPC: 812226031412
- PPN: DWD-DWC-VA853WTIR
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$559.84/ EA
Description
Featuring Star-Light Plus™ color in near-total darkness, 4K Universal HD over Coax® cameras deliver crystal-clear images and support HD-Analog, HD-TVI HD-CVI and all legacy analog signal support. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections, and can be controlled via the same coax cable using UTC. All Star-Light Plus™ 4K cameras are engineered to work with our VMAX® A1 4K™ DVRs using your existing coax infrastructure for a cost-effective, high-resolution surveillance solution.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/1.8" image sensor
- 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 70' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- UL listed
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP67 rated
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
MECHANICAL
- Material
- Aluminum vandal ball housing
- Weight
- 1.16lbs (0.53kg)
Dimensions4.92" x 4.05" (125 x 103 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC12V only
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Highlight masking exposure (HME)
- Yes
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 60dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off-x32 (disabled at 4K)
Wide dynamic range (WDR) dB120dB
White balanceYes
Dynamic range compression (DRC)Yes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
LENS
- Focal length
- 2.8mm
- Field of view (FoV)
- 106.5°
Lens typeFixed lens
IR distance70ft range
- Image sensor
- 8MP 1/1.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
- Resolution
- Max 3840 x 2160
- Video output
- 4K @ 15fps, 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
Active pixels3864(H) x 2176(V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
