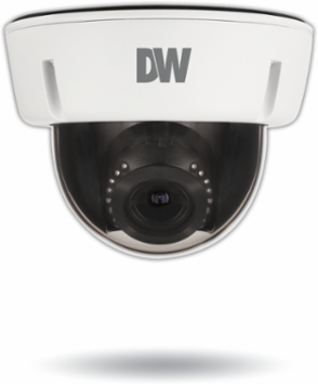

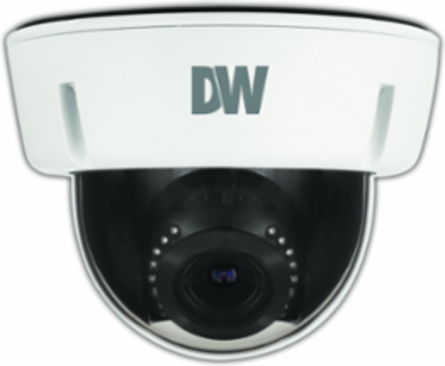

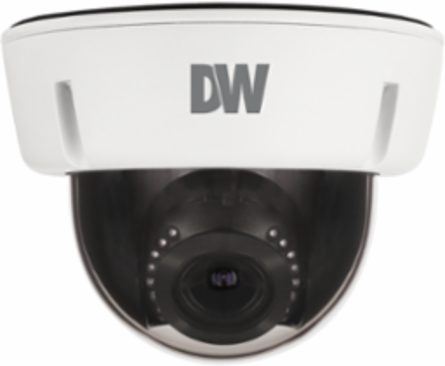

Digital Watchdog DWC-V6863WTIRW 4K Vandal Dome Camera, 3.6~10mm Vari-Focal Lens, IP66 Rating

  • MPN: DWC-V6863WTIRW
  • UPC: 812226031504
  • PPN: DWD-DWC-V6863WTIRW

CAD

$668.03

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience unparalleled surveillance capabilities with the Star-Light Plus™ UHDoC® 4K vandal dome camera, engineered by Digital Watchdog. This advanced security solution features an 8MP 1/1.8" CMOS image sensor that delivers stunning 4K resolution at 15 frames per second, ensuring crystal-clear video quality even in challenging lighting conditions. With its innovative Star-Light Plus™ technology, this camera excels in near-total darkness, allowing for vibrant color imaging and a robust infrared range of up to 100 feet. Designed for durability and reliability, the camera is housed in an IK10-rated impact-resistant aluminum casing and is IP66-rated for dust and water resistance, making it suitable for various environments. The vari-focal p-iris lens offers a flexible focal length of 3.6 to 10mm, providing a wide field of view and the ability to adjust for different surveillance needs. Additional features such as smart digital noise reduction, true wide dynamic range, and programmable privacy zones further enhance its functionality, making this camera an ideal choice for comprehensive security monitoring.

Features

  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all legacy analog signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/1.8" image sensor
  • 4K at 15fps, 4MP or 2.1MP/1080p at real-time 30fps
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • CleanView™ hydrophobic dome coating repels water, dust and grease
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • NDAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 10-rated impact-resistant
  • 5 year warranty

Documentation & Downloads

Specifications

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
IP rating
IP66 environmental-rated water and dust-resistant
Other certifications
FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant

MECHANICAL

Material
Aluminum vandal housing, polycarbonate dome
Weight
1.98lbs (0.9kg)
Dimensions5.7" x 4.26" (145 x 108.3 mm)
Warranty5 year warranty

ELECTRICAL

Power requirement
DC12V/24VAC dual voltage

OPERATIONAL

Shutter mode
Auto
Backlight
Yes
Wide dynamic range (WDR)
True WDR, off, on
Smart DNR™ 3D digital noise reduction
3D/2D DNR
Highlight masking exposure (HME)
Yes
Day / night
Auto, day (color), night (B/W)
Auto gain control
Max 60dB
Privacy zones
Yes
Gamma
0.45
RS485 / UTP built-in
UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off-x32 (disabled at 4K)
Wide dynamic range (WDR) dB120dB
White balanceYes
Dynamic range compression (DRC)Yes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes

LENS

Focal length
3.6 ~ 10mm
Field of view (FoV)
100.3 ~ 46.4°
Lens typeVari-focal p-iris lens
IR distance100ft range


Image sensor
8MP 1/1.8" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 4K and CVBS at 960H
Resolution
Max 3840 x 2160
Video output
4K @ 15fps, 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps
Active pixels3864(H) x 2176(V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
