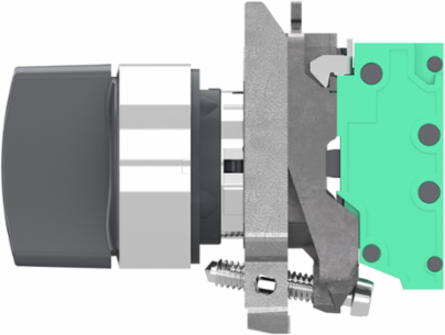

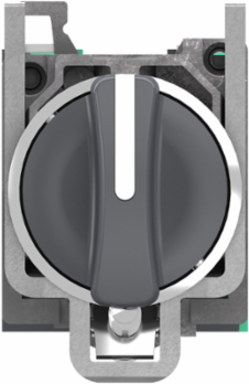

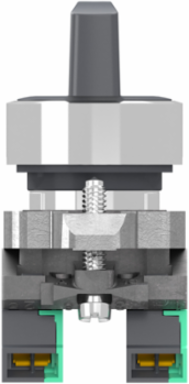

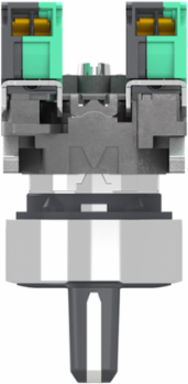

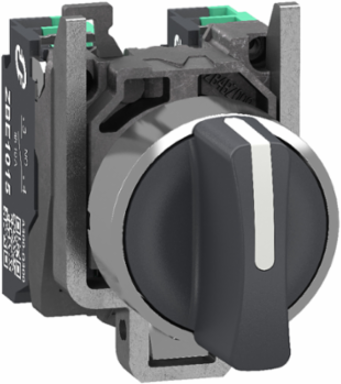

Schneider Electric XB4BD335 Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, stay put, 2 NO, compact push in terminals
- MPN: XB4BD335
- PPN: SCH-XB4BD335
CAD
$95.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB4 modular black selector switch has 3 positions and operates with a stay-put mechanism. This metal selector switch provides an ergonomic interface for controlling your machines. It is supplied with a standard handle. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This selector switch is equipped with 2 normally open (NO) contacts, featuring a slow break operation. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

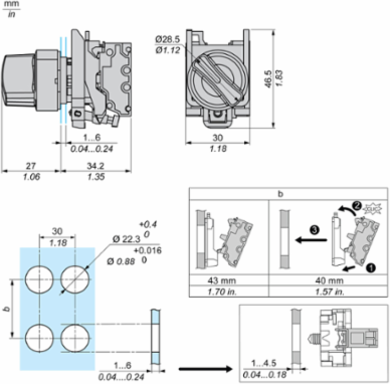

Depth59.2 mm
Physical Attributes
- Cap Operator Or Lens Color
- black
Complementary Attributes
- Ie Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1
Us Rated Supply Voltage600 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0

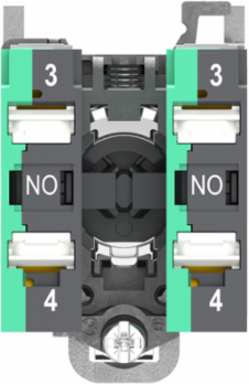

- Terminals Description Iso N 1
- (23-24)NO, (23-24)NO
- Connections Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0150384171, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0185970472
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.123886
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-05-23
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308005EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- chromium plated metal
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB4
- Head Type
- standard
- Mounting Diameter
- 22.5 mm
- Operator Profile
- black standard handle
- Positive Opening
- without
- Product Or Component Type
- selector switch
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Torque Value
- 0.14 N.m NO changing electrical state
- Type Of Operator
- stay put
- Cap Operator Or Lens Color
- black
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Width Nominal
- 30 mm
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2.6862
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2.6862
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1320770351, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.8 kg CO2 eq., 0.7654923919
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialzamak
Mechanical Durability1000000 cycles
Operator Position Information3 positions +/- 45°
Overvoltage Categoryclass I conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ith Conventional Free Air Thermal Current10 A IEC 60947-5-1
Pep CodeENVPEP2308005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Height Nominal47 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.6862
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.1836
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69, IP69K, IP67
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.0550908913
- Environmental Disclosure
- ENVPEP2308005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308005EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Overview Attributes
- Device Presentation
- complete product
