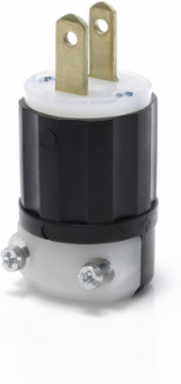

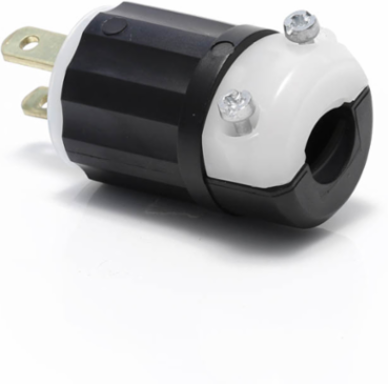

Leviton MS2-P Midget Plug 15 Amp 125 Volt Non-Grounding, NEMA 1-15P, Black & White
- MPN: MS2-P
- UPC: 078477011737
- PPN: LEV-MS2-P
CAD
$20.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

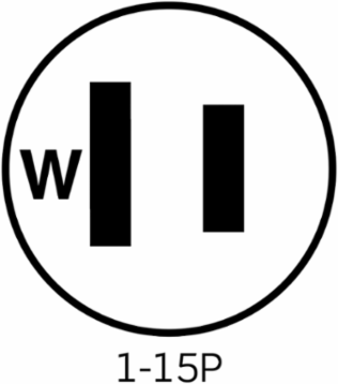

15 Amp, 125 Volt, NEMA 1-15P, 2P, 2W, Plug, Straight Blade, Industrial Grade, Non-Grounding, Midget - Black-White
Features
- Leviton's Black & White Midget line of industrial grade locking plugs and connectors feature rugged construction that resists impact, heat, chemicals and rough use • Superior conductivity – contacts with solid, one-piece construction • Improved gripping and pulling – ergonomic design with wider ribs • Accepts wide range of cord sizes – with unique cord clamp • Backed by a limited limited lifetime warranty!
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- .218 - .430
- Terminal Accom.
- 18-10 AWG
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Product Features
- Brand
- Black and White
- Wire Gauge
- 18-14 AWG
Device TypeStraight Blade Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire2
