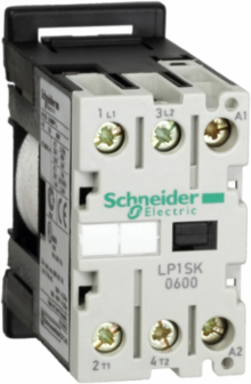

Schneider Electric LP1SK0600BD TeSys SK Mini Contactor 2P 12A 690V AC-1 24V DC Coil
Schneider Electric LP1SK0600BD TeSys SK Mini Contactor 2P 12A 690V AC-1 24V DC Coil
- MPN: LP1SK0600BD
- PPN: SCH-LP1SK0600BD
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$80.51/ EA
Description
TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 24V DC control circuit with no inrush consumption, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Good adaptability: possible to insert contact block and suppressor module
- High durability & stable performance: up to 1200 cycles/hour for operating rates
- Reliable in high and low temperature environment
- Modularity design and compact size for easy maintenance, save time and space on installation
- Wide application with multi standards certifications
Specifications
Conformance Attributes
- Product Certifications
- CB Scheme, CE, UKCA, EAC, cULus
StandardsEN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.85...1.1 Uc (at <50 °C), drop-out: 0.1...0.75 Uc (at <50 °C)
- Rated Breaking Capacity
- 52 A at <= 400 V for power circuit conforming to NF C 63-110, 52 A at <= 400 V for power circuit conforming to IEC 60947
- Maximum Operating Rate
- 1200 cyc/h
IRMS Rated Making Capacity66 A at 690 V AC conforming to IEC 60947, 66 A at 690 V AC conforming to NF C 63-110
Control Circuit TypeDC standard
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 4...6 ms coil de-energisation and NO opening, 8...12 ms coil energisation and NO closing
- Ui Rated Insulation Voltage2
- 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.4 kg CO2 eq., 0.37238162354829996
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 1.2191683759210354
- Connections Terminals
- power circuit connector 1 0.35-6 mm²flexible with cable end, power circuit connector 1 0.5-6 mm²flexible without cable end, power circuit connector 1 1.5-6 mm²solid, power circuit connector 2 0.35-1.5 mm²flexible with cable end
- Ui Rated Insulation Voltage5
- 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
- Local Publishable Date
- 2025-07-09
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Average Impedance
- 4 mOhm - Ith 12 A 50 Hz
- Contactor Application
- resistive load
- Energy Efficiency Optimized
- False
- Hold In Power Consumption In W
- 2.2-2.2 W 20 °C
- Mechanical Durability
- 10 Mcycles
- Package Weight Lbs
- 122.0 g
- Poles Description
- 2P
- Product Or Component Type
- mini contactor
- Returnability
- Yes
- Tightening Torque
- 0.8 N.m connector pozidriv No 1
- Utilisation Category
- AC-1
- Icw Rated Short Time Withstand Current2
- 50 A 55 °C for power circuit
- Ith Conventional Free Air Thermal Current2
- 12 A (at 55 °C) for power circuit
- Ue Rated Operational Voltage2
- power circuit 690 V AC 50/60 Hz
- Stocking Flag
- Y
- Pep Code
- ENVPEP1503003
- Pep Verification Date
- 2025-11-21
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Icw Rated Short Time Withstand Current5
- 50 A 55 °C for power circuit
- Ith Conventional Free Air Thermal Current5
- 12 A (at 55 °C) for power circuit
- Ue Rated Operational Voltage5
- power circuit 690 V AC 50/60 Hz
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Protective TreatmentTC IEC 60068, TC DIN 50015
Carbon Footprint Of The Distribution Phase A40.08748530601806714, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.013472865458001313, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B680 kg CO2 eq., 79.80908997511375
Connections Terminals3power circuit connector 1 0.35-6 mm²flexible with cable end, power circuit connector 1 0.5-6 mm²flexible without cable end, power circuit connector 1 1.5-6 mm²solid, power circuit connector 2 0.35-1.5 mm²flexible with cable end, power circuit connector 2 0.35-2.5 mm²flexible without cable end, power circuit connector 2 1.5-4 mm²solid
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Associated Fuse Rating16 A gI at <= 440 V for power circuit conforming to IEC 60947
Compatibility CodeLP1SK
Device Short NameLP1SK
Heat Dissipation2.2-2.2 W
Inrush Power In W2.2-2.2 W 20 °C)
Mounting Supportrail
Pole Contact Composition2 NO
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductTeSys SK
Sustainable PackagingYes
Total Lifecycle Carbon Footprint82 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ie Rated Operational Current212 A (at <55 °C) AC AC-1
Uc Control Circuit Voltage224 V DC
Medium Descmini contactor, TeSys SK, 2P(2NO), AC-1, 690V 12A, 24V DC coil
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Global Commercial StatusCommercialised
Ie Rated Operational Current512 A (at <55 °C) AC AC-1
Uc Control Circuit Voltage524 V DC
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 81.50159814605917
- Ambient Air Temperature For Storage
- -50-70 °C
- Environmental Disclosure
- ENVPEP1503003
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1503003
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Operation-20-50 °C
Circularity ProfileENVEOLI1503003
IP Degree Of ProtectionIP2X VDE 0106
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-21
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- mini contactor
Range Of ProductTeSys SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
Depth55.5 mm
