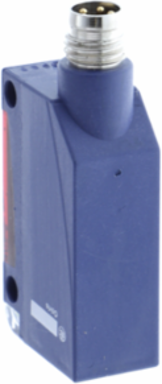

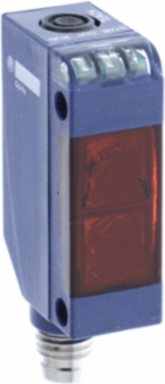

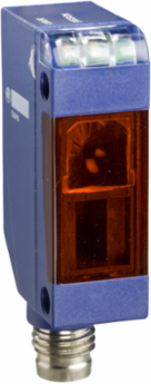

Telemecanique Sensors XUM0APSAM8 Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8

MPN: XUM0APSAM8
PPN: TES-XUM0APSAM8

$228.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This miniature design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and alignment, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+55°C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is CSA and UL certified.

Documentation & Downloads

Specifications

Key Specifications

Electrical Connection	1 male connector M8, 4 pins
Discrete Output Function	1 NO or 1 NC programmable
Range Of Product	Telemecanique Photoelectric sensors XU
Sensor Name	XUM
Wiring Technique	3-wire
Detection System	multimode
Supply Circuit Type	DC
[Sn] Nominal Sensing Distance	3-3 m polarised reflex need reflector XUZC50 \|\| 10-10 m thru beam need a transmitter XUM0AKSAM8T \|\| 0.1-0.1 m diffuse with background suppression \|\| 0.4-0.4 m diffuse

Discrete Output Type	PNP
Type Of Output Signal	discrete
Emission	infrared diffuse \|\| infrared diffuse with background suppression \|\| infrared thru beam \|\| red polarised reflex
Material	plastic
Series Name	general purpose multimode
Sensor Design	miniature
Electronic Sensor Type	photo-electric sensor

Complementary

Current Consumption	35 mA no-load
Switching Frequency	<= 250 Hz \|\| 240 Hz
Status Led	1 LED green)supply \|\| 1 LED red)instability \|\| 1 LED yellow)output state
Lens Material	PMMA
Net Weight	0.035 kg
Maximum Delay First Up	100 ms
Switching Capacity In Ma	<= 100 mA overload and short-circuit protection)
Enclosure Material	PBT
Output Type	solid state
Add On Output	with alarm output, 50 mA

Height	45 mm
Maximum Delay Response	2 ms
Setting-Up	self-teaching
Maximum Voltage Drop	<1.5 V closed state)
Maximum Delay Recovery	2 ms
Maximum Sensing Distance	14 m thru beam \|\| 4 m polarised reflex \|\| 0.1 m diffuse with background suppression \|\| 0.55 m diffuse
Wire Insulation Material	PVC
Width	12 mm
Depth	20 mm
[Us] Rated Supply Voltage	12...24 V DC reverse polarity protection

Environment

Product Certifications	CSA \|\| UL \|\| CE
Vibration Resistance	7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C

Ambient Air Temperature For Operation	-25-55 °C
Shock Resistance	30 gn 11 ms) IEC 60068-2-27
Ip Degree Of Protection	IP65 IEC 60529 \|\| IP67 IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP111232EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
