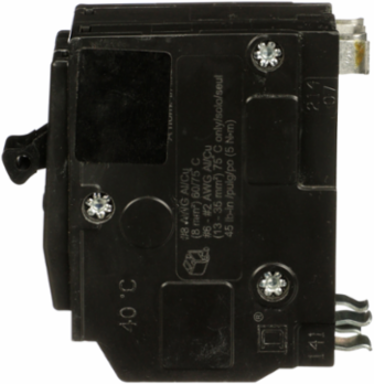

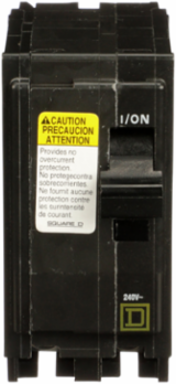

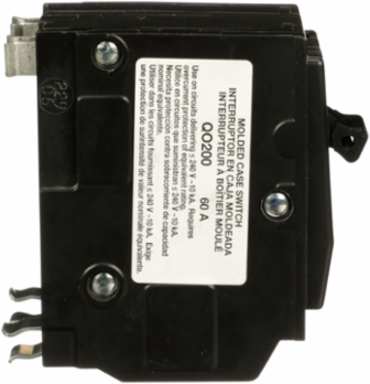

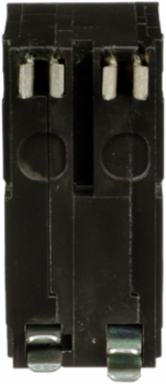

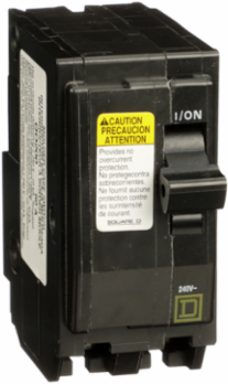

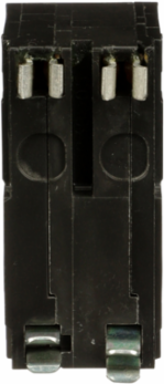

Square D QO200 Mini switch, QO, 60A, 2 pole, 240VAC, 10kA, plug in mount
Square D QO200 Mini switch, QO, 60A, 2 pole, 240VAC, 10kA, plug in mount
- MPN: QO200
- UPC: 785901371700
- PPN: SCH-QO200
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$186.86/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO mini switch is rated at 60A at 240VAC. This unit provides 10kA breaking capacity and plug in mounting. A complete range of handle accessories are available for this switch. QO and QOB miniature switches are UL listed under UL file E33117 and are CSA certified under file 025490_S_000 class 465204. QO and QOB miniature switches are UL listed under UL file E33117 and are CSA certified under file 025490_S_000 class 465204.
Specifications
Specifications
- Range Of Product
- QO
- Mounting Mode
- plug-in
- Electrical Connection
- box lugs
- [Ue] Rated Operational Voltage
- 240 V AC
Product Or Component Typeswitch
Poles Description2P
[In] Rated Current60 A
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary

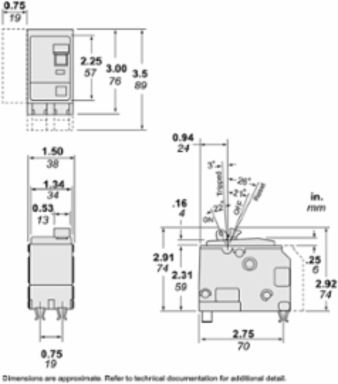

- Height
- 79 mm
- Number Of Spaces Required
- 2
- Breaking Capacity
- 10 kA 240 V AC 50/60 Hz
- Width
- 38 mm
Tightening Torque5-5 N.m 10-25 mm² AWG 8...AWG 2)
Net Weight0.245 kg
Awg GaugeAWG 8...AWG 2 copper or aluminum
Depth74 mm
Environment
- Product Certifications
- UL listed || CSA
