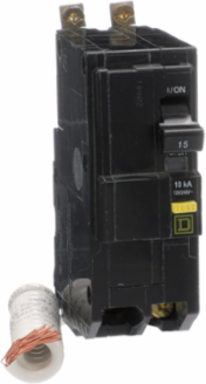

Square D QOB215GFI Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount
Square D QOB215GFI Mini circuit breaker, QO, 15A, 2 pole, 120/240VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount
- MPN: QOB215GFI
- UPC: 785901563013
- PPN: SCH-QOB215GFI
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$802.37/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB215GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212005
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI2212005
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary

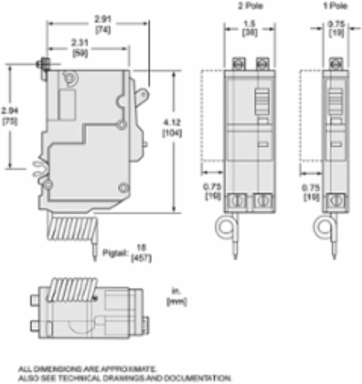

- Height
- 105 mm
- Number Of Spaces Required
- 2
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Width
- 38 mm
Tightening Torque4-4 N.m || 4.6-4.6 N.m 4-20 mm² AWG 12...AWG 4)
Net Weight0.431 kg
Awg GaugeAWG 14...AWG 8 copper || AWG 12...AWG 8 aluminum
Depth74 mm
Specifications
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Product Or Component Type
- miniature circuit-breaker
- Mounting Mode
- bolt-on
- Electrical Connection
- pressure plate
- [Ue] Rated Operational Voltage
- 120/240 V AC || 120 V AC
Range Of ProductQO
Circuit Breaker Applicationnot rated
Poles Description2P
[In] Rated Current15 A
