Square D QOB230GFI Miniature Circuit Breaker 30A 2 Pole 120/240V AC Ground Fault Protection

Miniature Circuit Breaker 30A 2 Pole 120/240V AC Ground Fault Protection - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/f22eae8b666963b39e996e4642adb4353b819622-medium.png

Miniature Circuit Breaker 30A 2 Pole 120/240V AC Ground Fault Protection

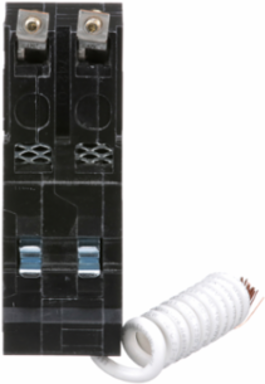

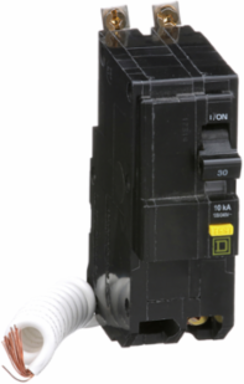

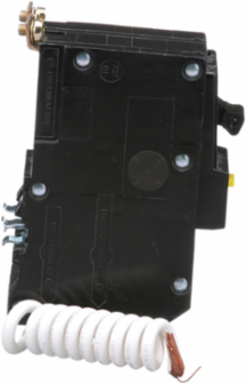

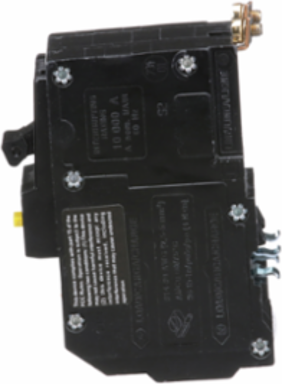

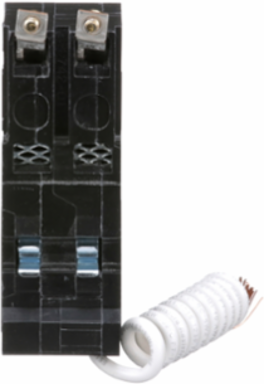

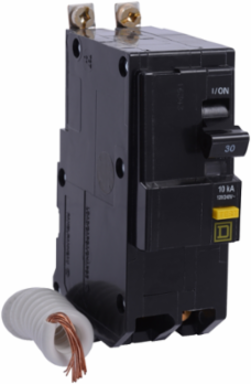

Square D QOB230GFI Miniature Circuit Breaker 30A 2 Pole 120/240V AC Ground Fault Protection

MPN: QOB230GFI
UPC: 785901563037
PPN: SCH-QOB230GFI

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$836.78/ EA

Qty:

Loading add to cart quantity...

Description

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB230GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Current Rating: 30 A

Circuit Breaker Type: Ground Fault Protecting Class A 6 mA

Number of Poles: 2P

Mounting Type: Bolt-on

Wire Size: AWG 14-8 copper, AWG 12-8 aluminum

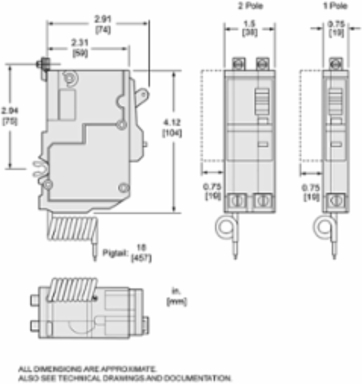

Height: 105 mm

Depth: 74 mm

Ambient Air Temperature For Operation: 40 °C

RoHS Compliance: Compliant with Exemptions

Range Of Product: QO

Mercury Free: Yes

Voltage Rating120/240 V AC

Interrupt Rating10 kA 120/240 V AC

Number of Panel Spaces2

Electrical ConnectionPressure Plate

Tightening Torque4-4.6 N.m

Width38 mm

Net Weight0.400 kg

Product CertificationsUL Listed, CSA Certified

Country of OriginMexico

Product Or Component TypeMiniature Circuit-Breaker

Warranty18 months

Downloads
