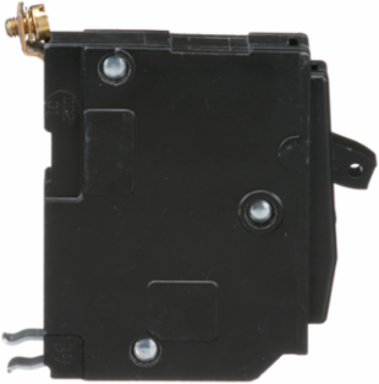

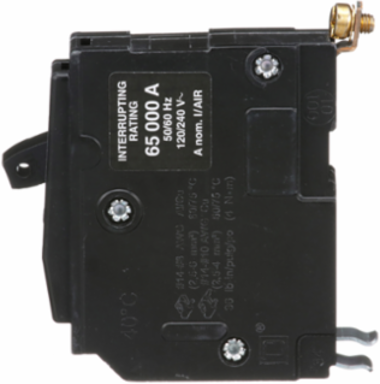

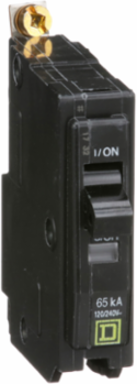

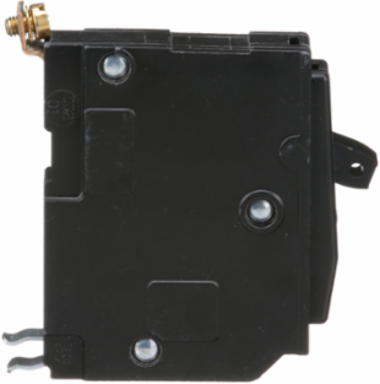

Square D QHB115 Mini Circuit Breaker 15A 1 Pole 120/240V AC 65kA Bolt-On Mount
- MPN: QHB115
- UPC: 785901255376
- PPN: SCH-QHB115
CAD
$254.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 15A 1 Pole 120/240V AC 65kA Bolt-On Mount
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Interrupt Rating
- 65 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on

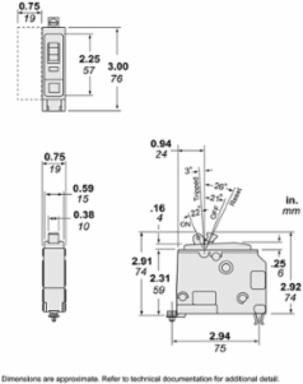

- Height
- 76 mm (3.00 in.)
- Depth
- 74 mm (2.91 in.)
- Ambient Air Temperature for Operation
- 40 C (104 F)
- Electrical Connection
- Pressure plate
- Circuit Breaker Application
- HACR and Switching Duty rated
- Net Weight
- 0.141 kg
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- REACH Regulation
- Contains SVHC above threshold
Voltage120/240 V AC
Number of Poles1P
Wire SizeAWG 14 to AWG 8 copper or aluminum
Width19 mm (0.75 in.)
Tightening Torque4.6 N.m (40.71 lbf.in)
CertificationsUL Listed, CSA Certified
Product TypeMiniature circuit breaker
Circuit Breaker TypeStandard
Range of ProductQO
Toxic Heavy Metal FreeYes
RoHS ComplianceCompliant with exemptions, China RoHS out of scope
Sustainable Offer StatusGreen Premium product
