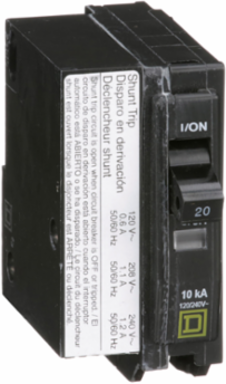

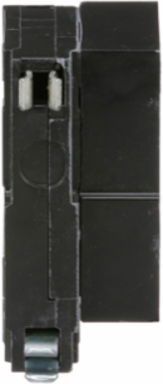

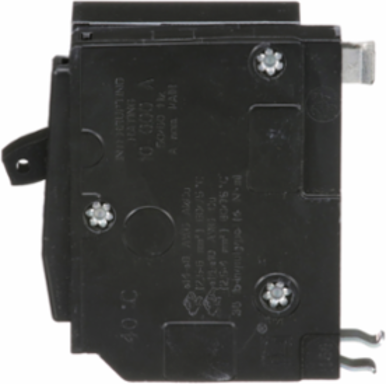

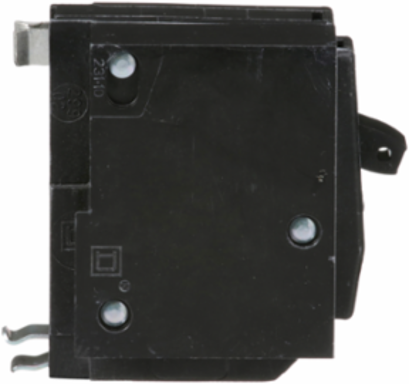

Square D QO1201021 Mini Circuit Breaker 20A 1 Pole 120/240V AC 10kA Plug-In Mounted
Square D QO1201021 Mini Circuit Breaker 20A 1 Pole 120/240V AC 10kA Plug-In Mounted
- MPN: QO1201021
- UPC: 785901493815
- PPN: SCH-QO1201021
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$382.78/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Rated Current
- 20 A
- Rated Voltage
- 120/240 V AC
- Circuit Breaker Application
- HACR and Switching Duty rated
- Mounting Type
- plug-in
- Number of Spaces Required
- 2
- Tightening Torque
- 4 N.m
- Width
- 38 mm
- Net Weight
- 0.290 kg
- Product Or Component Type
- miniature circuit-breaker
- Accessory / Separate Part Type
- shunt trip 120/208/240 V AC
- Halogen Content Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Rohs Exemption Information
- Yes
Breaking Capacity10 kA 120/240 V AC 50/60 Hz
Poles1P
Ambient Air Temperature For Operation40 °C
Circuit Breaker Typestandard
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Electrical Connectionpressure plate
Range Of ProductQO
Product CertificationsUL listed, CSA
Mercury FreeYes
Eu Rohs DirectiveCompliant with Exemptions
Sustainable Offer StatusGreen Premium product
