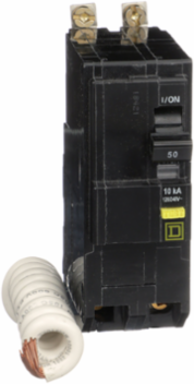

Square D QOB250GFI Mini Circuit Breaker 50A 2-Pole 10kA 6mA Ground Fault 120/240VAC

MPN: QOB250GFI
UPC: 785901362975
PPN: SCH-QOB250GFI

$896.17

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mini Circuit Breaker 50A 2-Pole 10kA 6mA Ground Fault 120/240VAC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	74 mm

Compliance	TAA Compliant

Complementary Attributes

Line Rated Current	50 A

Important Information Attributes

Persona Type Ids	EU, LC, OM
Tightening Torque	5-5 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
[Ue] Rated Operational Voltage	120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.0971944046
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	4 kg CO2 eq., 3.6404265446
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Use Carbon Footprint	37.375
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Awg Gauge	12 AWG...4 AWG aluminium14 AWG...6 AWG copper
Circuit Breaker Type	ground fault protecting class A 6 mA
Energy Efficiency Optimized	False
Number Of Poles	2P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	41 kg CO2 eq.
Database Version	2022-01
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Mexico
Energy Model - Use [B6]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal	105 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	30.218
Customs Code	8536200040

Persona Type Names	End User, Contractor, Original Equipment Manufacturer
Certificate Agency	UL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]	0.1201294349, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0032780184, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	37 kg CO2 eq., 37.375
Local Publishable Date	2026-04-14
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2212005
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Circuit Breaker Application	not rated
Electrical Connection	pressure plate
Mounting Mode	bolt-on
Number Of Spaces Required	2
Product Or Component Type	miniature circuit-breaker
Returnability	Yes
Sustainable Packaging	No
Pep Code	ENVPEP2212005EN
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal	38 mm
Package Weight(Lbs)	471.736 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	455.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	5.7146
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	503.15
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	472.94
Water Pollution (M3) Operational Energy Use [B6]	1842.6

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	41.2360284025
Circularity Profile	ENVEOLI2212005
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2212005EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent external review

Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	40 °C
Environmental Disclosure	ENVPEP2212005EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
