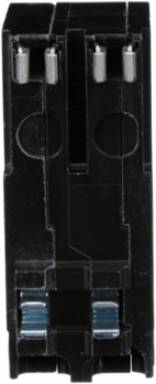

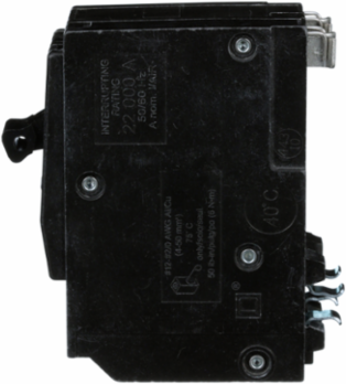

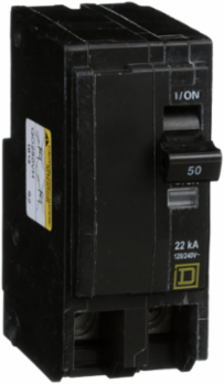

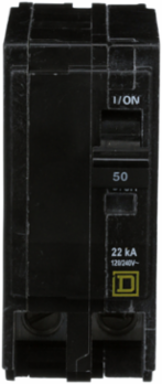

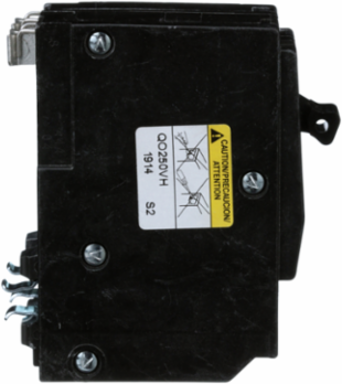

Schneider Electric QO250VH Miniature Circuit Breaker, 50A, 2 Pole, 120/240V AC, 22kA, Plug-In Mount
Schneider Electric QO250VH Miniature Circuit Breaker, 50A, 2 Pole, 120/240V AC, 22kA, Plug-In Mount
- MPN: QO250VH
- UPC: 785901054962
- PPN: SCH-QO250VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$146.69/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 50A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 50 A
- Interrupt Rating
- 22 kA
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- Standard
- Wire Size
- AWG 8 to AWG 2 copper or aluminum
- Height
- 79 mm
- Depth
- 74 mm
- Certifications
- UL listed, CSA certified
- RoHS Compliance
- Compliant with Exemptions
- Halogen Content
- Halogen free
- Range Of Product
- QO
- Number Of Spaces Required
- 2
Voltage Rating120/240 V AC
Number of Poles2P
Mounting TypePlug-in
Electrical ConnectionBox lugs
Tightening Torque5.6 N.m
Width38 mm
Net Weight0.318 kg
Ambient Rating40 °C
Mercury FreeYes
Warranty18 months
Product TypeMiniature circuit-breaker
